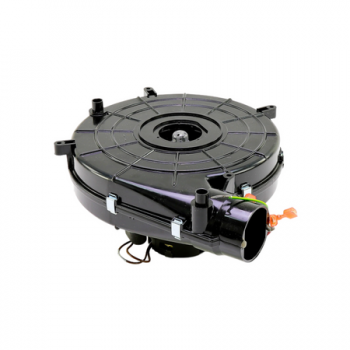

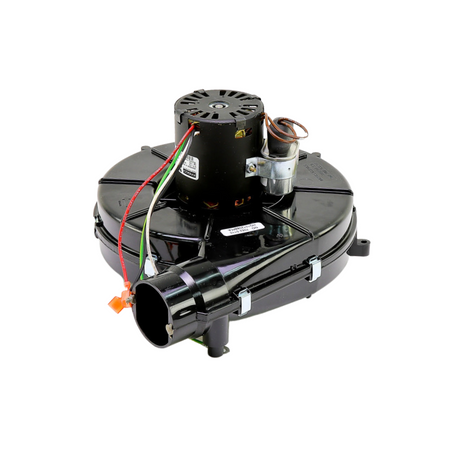

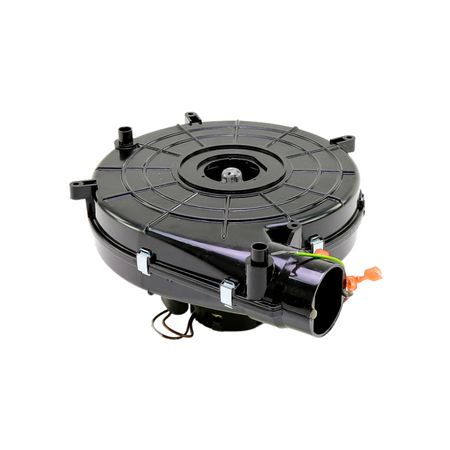

The Heil Quaker 1012088 is a single-phase draft inducer motor blower ventor assembly with a 4 MFD at 370 VAC capacitor. This motor operates with 115V, 1/20Hp, and 60 Hz power ratings. It has a plastic housing with a U62B1 motor that rotates 3400/2600 RPM at 2-speed. UL and CSA Recognized.
The draft inducer motor is thermally protected and rated class B that withstands 130°C (266°F) temperature. The assembly uses a sealed ball bearing to reduce friction and support rotation. And it has an air-over cooling motor to be cooled by the airstream of a fan or blower.
The 1012088 is compatible with the following furnace models:
| NCPM100HJA1 NTPM100HJB1 NTVM125KNB1 TCK125N20A1 VNK100J16B1 |
NCPM100HJB1 NTPM125KNB1 NTVM125KNB2 TCK125N20B1 VNK100J16B2 |
NCPM125KNA1 NTVM100HJB1 TCK100J16A1 TNK100J16B1 VNK125N20B1 |
NCPM125KNB1 NTVM100HJB2 TCK100J16B1 TNK125N20B1 VNK125N20B2 |
| Approvals | UL and CSA Recognized |
|---|---|
| Bearing Type | Sealed Ball |
| Housing Material | Plastic |
| Motor Speed | 2-speed |
| Rotation Speed | 3400/2600 RPM |
| Horsepower | 1/20Hp |
| Voltage | 115V |
| Frequency | 60 Hz |
| Insulation Class | Class B |
| Number of Phase | Single Phase |
