Heil Quaker 1171720 1/3HP 230V 1-Phase Motor Blower

Name: Heil Quaker 1171720 1/3HP 230V 1-Phase Motor Blower
Brand: Heil-Quaker
SKU: 1171720
Price: 405.97 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Heil Quaker 1171720 1/3HP 230V 1-Phase Motor Blower

SKU: 1171720

Brand:

Rating:

Quantity	Price	Stock
2 Usually Ships 3 - 10 Business Days	$405.97 /ea	2

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

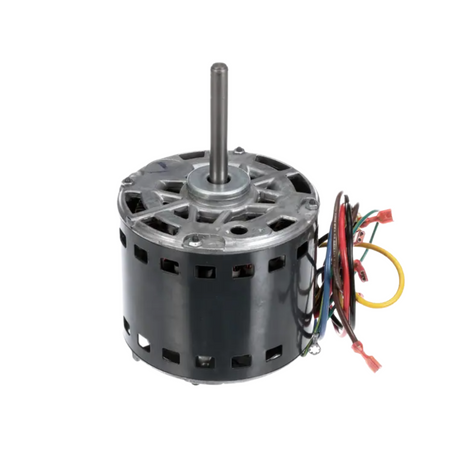

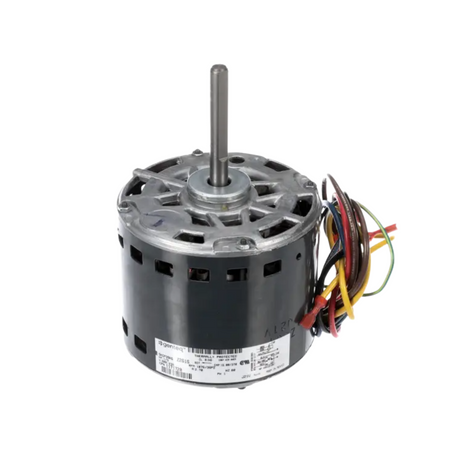

The Heil Quaker 1171720 is a single-phase blower motor that operates with 1/3Hp and 208-230V power ratings. This is a 3-speed motor that rotates in a counterclockwise direction at 1075 RPM.

The blower motor features a permanent split capacitor (psc) motor, sleeve bearing, and band mount. This component rotates the fan that heats or cools the system and then pushes it out of the vents.

The 1171720 is suitable for use with EBP/EBX Series and A2/B2 fan coil mode. Check out below the following compatible International Comfort Products models:

EBX3600A1
EBX3600A2
EBXX3600A1
FSM2X3600A1
FSM4X3600A1

Motor Speed	1075 RPM
Motor Type	PSC
Frame Size	NEMA 48
Shaft Rotation	Counterclockwise
Horsepower	1/3Hp
Voltage	208-230V
Number of Speed	3-Speed
Number of Phase	Single-Phase
Bearing Type	Sleeve
Mounting Type	Band

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

looking for blower motor for Heil furnace, furnace model number is NBH5524KA1

Asked on November 03, 2017 by brian from canada

1 Answers

Have an answer? Click Here

Click here to see the 9632 Emerson Nidec US Motors 115 Volt replacement motor. Please verify the specifications as there seems to be cross over reference to the L9632 49288.

Replied on November 03, 2017 by Ori from Industrial Stores
