Heil Quaker 1186436 Blower Motor 3/4Hp

Name: Heil Quaker 1186436 Blower Motor 3/4Hp
Brand: Heil-Quaker
SKU: 1186436
Price: 745.04 USD
Availability: InStock
Rating: 5 (1 reviews)

Images for general purposes only. Actual may be different than depicted.

Heil Quaker 1186436 Blower Motor 3/4Hp

SKU: 1186436

Brand:

Rating: (1)

Quantity	Price	Stock
17 Usually Ships 1 - 2 Weeks	$745.04 /ea	17

Add to Cart

Add to Wishlist

The 1186436 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Heil Quaker 1184512 115V 3/4Hp Blower Motor	1184512 Brand Heil-Quaker
Heil Quaker 1185965 3/4Hp Ecm Blower Motor	1185965 Brand Heil-Quaker

Add to Cart

Add to Wishlist

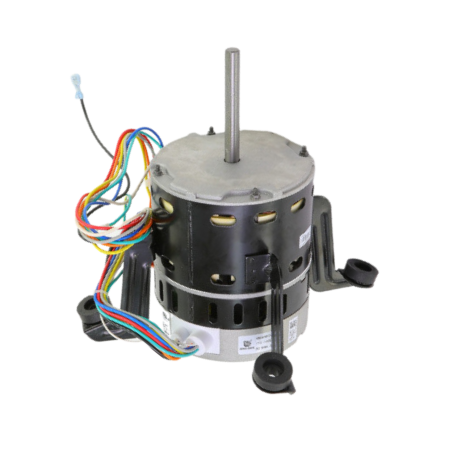

The Heil Quaker 1186436 is a single-phase blower motor with 3/4Hp, 115/120V, and 50/60 Hz power supply. This device has Class B insulation that withstands up to 130°C.

The blower motor has a single-side flat shaft with a 1/2" diameter and 3-7/8" length. This motor shaft rotates at 1050 RPM speed in a counterclockwise direction.

This motor is an ECM (electronically commutated motor) type which means it has an electronic control regulating the speed with continuous air over duty.

The 1186436 directly replaces 1184512 and 1185965. The component can be mounted via arm and grommet.

Rotation Direction	Counterclockwise
Rotation Speed	1050 RPM
Number of Phase	Single-Phase
Motor Type	ECM (Electronically Commutated Motor)
Horsepower	3/4Hp
Frequency	50/60 Hz
Voltage	115/120V
Insulation Class	Class B
NEMA Frame	48
Shaft Type	Single Side Flat

Write a Review

By Bichloan

from West Hartford CT

Yes, I would recommend this product to a friend or co-worker

5.0 Good Product and Fast Shipping

The blower came in a very well protected shipment. Fast shipping. Thank you It is good product, easy to install. It is running well since then, no issue. No chance to take a picture to send to Industrial Stores. Thank you

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

do I need a capacitor for this motor?

Asked on October 01, 2021 by Girish from Chalfont, PA

1 Answers

Have an answer? Click Here

A capacitor is commonly used in HVAC/R motor applications and typically used in the start up and/or run phases of the motor. We are not able to comment on your specific application as there are many variables that would determine the answer specific to your needs. We always suggest having a licensed heating, air conditioning, or refrigeration technician review your system and application to ensure the equipment select is correct for your application and safely installed and tested in accordance with safety standards set forth in your location by the Authority Having Jurisdiction.

Replied on October 04, 2021 by Ori from Industrial Stores
