Henry Technologies S-8640 1-1/8" 7/8" Out Horizontal Receiver

Name: Henry Technologies S-8640 1-1/8" 7/8" Out Horizontal Receiver
Brand: Camstat-Henry Technologies
SKU: S-8640
Price: 783.05 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Henry Technologies S-8640 1-1/8" 7/8" Out Horizontal Receiver

SKU: S-8640

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 3 - 4 Weeks Usually Ships 3 - 4 Weeks	$783.05 /ea	Usually Ships 3 - 4 Weeks

Add to Cart

Add to Wishlist

Shipping Note

Ships via LTL ( Truck )

Add to Cart

Add to Wishlist

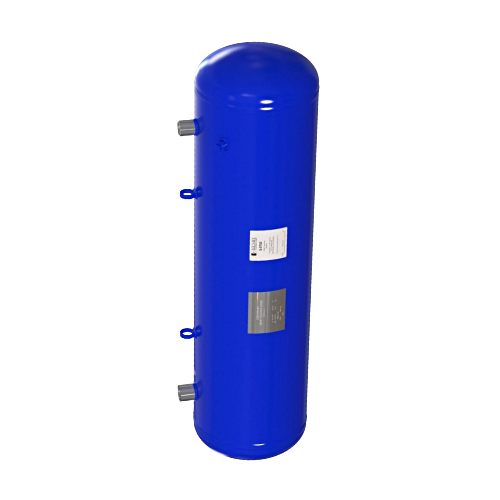

The Henry Technologies S-8640 is a liquid refrigerant receiver. The receiver has plated steel ODS connections, 1-1/8" for the inlet and 7/8" outlet.

The Henry Technologies Liquid Refrigerant Receivers are ideal to be installed in industries that uses refrigeration and air conditioning. The main functionality of the receiver is to store liquid refrigerants such as ammonia, HFC, and HCFC. Oils and various industrial fluids non-corrosive to steel are also applicable. The storage of refrigerants will keep a continuous flow or supply to the expansion device and serve as proper storage for the refrigerant charge during system service or maintenance.

Features:

ODS refrigerant connections
NPT relief device fitting
Bare receiver without mounting brackets

Inlet Size	1-1/8"
Outlet Size	7/8"
Connection Type	ODS
Internal Volume 3 (ft ) at 90%	0.95
Maximum Working Pressure	450 psi(31 bar)
Operating Temperature	-20°F to +250°F (-29°C to +121°C)
Refrigerant	Ammonia, HFC and HCFC

Download Product Information:

Henry S-8640 Liquid Refrigerant Receiver Technical Datasheet

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

How much Freon does this receiver hold?

Asked on December 14, 2023 by George from Kansas City, Missouri

1 Answers

Have an answer? Click Here

Depending on which refrigerant, the "Pump Down Capacity varies for the S-8640.

Pump Down Capacity* (lbs)
R134A	R22	R404A	R407
70	69	59.8	37.1

*All Pump Down Capacities calculated at 90% of receiver volume at 90°F (32°C). The Internal Volume ft³ at 90% for the S-8640 is 0.95.

Replied on December 15, 2023 by Ori from Industrial Stores
