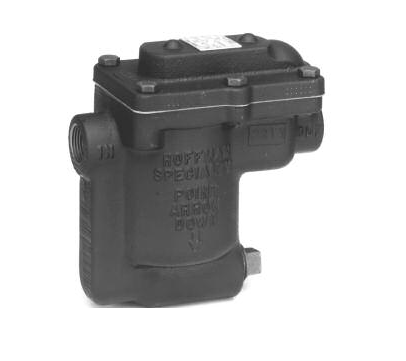

Inverted Bucket Steam Traps

The Series B inverted bucket traps are designed for a wide range of industrial applications including steam mains, laundry and dry cleaning plants, food processing and those that require a lift in the discharge lines.

Series B1 Features
• Available in sizes 1⁄2" and 3⁄4" NPT and BSPT
• Meets Mil specification WW-T-696-E Type I, Style B, Class 1-7
• Removable covers for easy in-line service
• Erosion resistant covers
• Stainless steel internal components
• Resistant to moderate water hammer
• Optional built-in thermic vent for faster heating
• Optional built-in strainer to reduce the number of piping connections
• Maximum capacities to 1700 lbs/hr. (771 kg/hr.)
• Maximum temperature 450°F (230°C)
• Maximum operating pressure 250 psig (17.3 bar)
