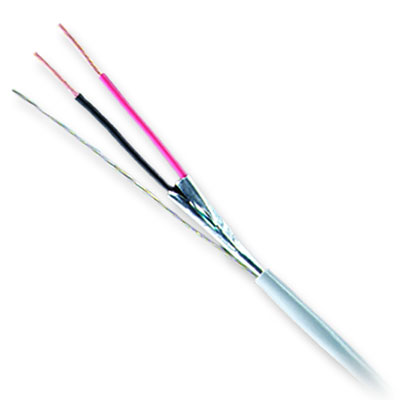

Honeywell 10621109 LONWorks Bus Cable Grey 1000ft Roll 22-Gauge 2-Pair Cable

Honeywell 10621109 LONWorks Bus Cable Grey 1000ft Roll 22-Gauge 2-Pair Cable
Images for general purposes only. Actual may be different than depicted.
Honeywell 10621109 LONWorks Bus Cable Grey 1000ft Roll 22-Gauge 2-Pair Cable

Honeywell 10621109 LONWorks Bus Cable Grey 1000ft Roll 22-Gauge 2-Pair Cable

SKU: 10621109
Rating:
Quantity Price Stock
Usually Ships 1-2 Weeks
Usually Ships 1-2 Weeks
$115.28     /ea
Usually Ships 1-2 Weeks
0
$0.00
0
$0.00
0
10621109
The Honeywell Gensis Series 1062 Low Voltage Cable is a 22 AWG 2-pair stranded level 4 cable for use with LonWork Networks.
The wire is a 7/0.096 gauge bare copper with a Polypropylene insulation of 0.006" nominal thickness and a nominal diameter of 0.049"
The insulation colors are Blue, White/Blue, Orange & White/Orange.
The outer PVC jacket is Gray with a nominal thickness of 0.017" and nominal diameter of 0.190"

Features:
  • Temperature Rating: 17 pf/ft nom.
  • Operating Voltage: 85 Ohms nom.
  • Capacitance: 15 pf/ft nom.
  • Impedance: 100 Ohms nom.
  • DC Resistance: 16.5 Ohms/M' at 20oC
  • Flame Rating: UL 1685 Vertical Tray
Conductor 22 AWG 7/0.096 Bare Copper
Jacket PVC
Temperature Range 17 pf/ft nominal
Flame Rating UL 1685 Vertical Tray
Insulation Polypropylene
