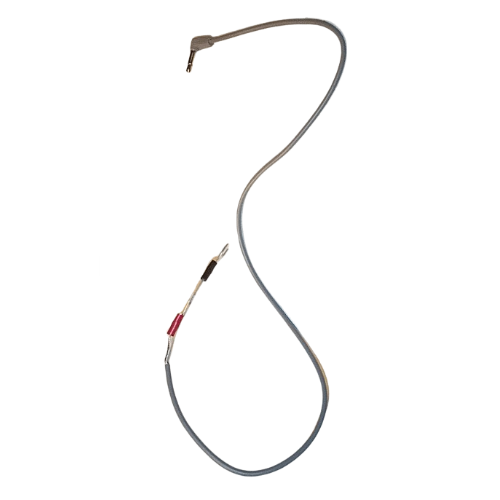

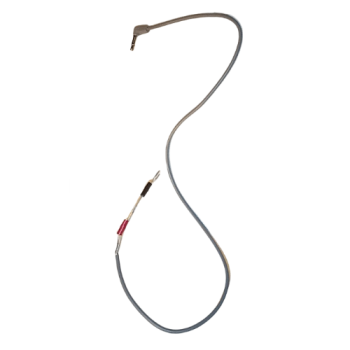

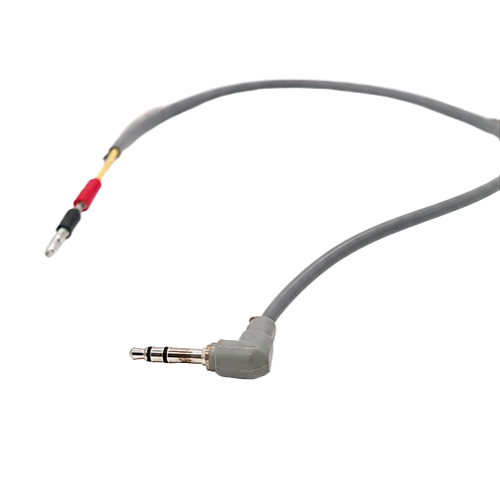

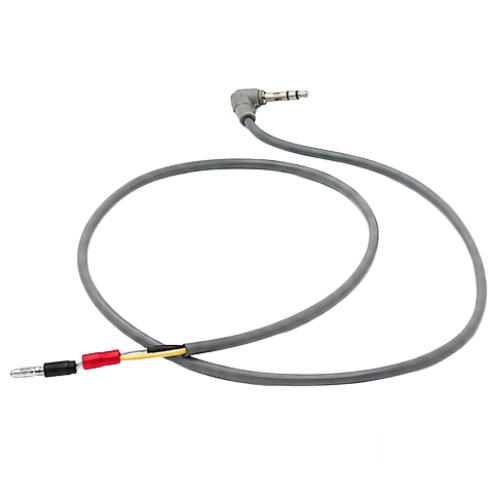

Honeywell 117053 Connector Plug is a specialized test lead and cable connector designed for use with the Honeywell 138166 Panel Meter in flame safeguard and combustion control applications.
It provides a secure connection between compatible Honeywell flame signal testing equipment and control components, helping technicians measure and troubleshoot microamp flame signal strength during system setup, service, and diagnostics.
The connector features a 1/8-inch male plug end and lead wire connections for consistent test equipment integration.
Compatible with the 138166 Panel Meter and select Honeywell flame safeguard amplifiers and controls, the 117053 is a dependable choice for field service, diagnostic testing, and replacement applications where a secure connection to Honeywell combustion control equipment is required.
Honeywell 117053 Connector Plug is a direct replacement for the Honeywell 96146 Connector.
The Honeywell 117053 is designed for use with the Honeywell 138166 Panel Meter in flame safeguard and combustion control diagnostic applications.
Yes. The 117053 Connector Plug is intended for use with the Honeywell 138166 Panel Meter.
It supports connection to compatible flame signal testing equipment used to measure and troubleshoot microamp flame signal strength.
Yes. It is suitable for field service, system setup, diagnostic testing, and troubleshooting of compatible Honeywell combustion control equipment.
Yes. The Honeywell 117053 Connector Plug directly replaces the Honeywell 96146 Connector.
The connector includes a 1/8-inch male plug end with lead wire connections for integration with compatible test equipment.
| Plug End | 1⁄8" Male Plug |
|---|---|
| Lead Connections | 18" Wire Leads terminated with ¼" Fork Terminals |
