The internal auxiliary switches are SPDT switches that are actuated by adjustable cams. The cams are factory mounted on the motor shaft at the power end of the motor. The settings of the cams determine the point in motor shaft rotation at which the auxiliary equipment will be switched on or off. These cams can be set to actuate the switches at any angle within the stroke of the motor. All TRADELINE motors include auxiliary switch cams which permit the installation of this auxiliary switch kit (220736A, 220736B).
These kits can be installed in Modutrol IV motors to control auxiliary equipment as a function of actuator motor shaft position.
■ The 220736B includes two Spdt Micro Switch V3 precision switches.
Either kit can be installed in any Tradeline Modutrol IV Motor.
■ Kits provide switch mounting bracket for easy installation internal to motor.
■ The auxiliary switches are actuated by adjustable cams inside the motor. These cams can be set to actuate the switches at any angle within the stroke of the motor. Only Modutrol IV TRADELINE models are equipped with the cam assemblies for actuating field-addable auxiliary switches. Switch adjustment procedures are the same as that for switches that come factory installed in Modutrol IV Motor models.
■ Switch differentials of 1° or 10° can be selected.
■ Leadwires color coded to ease correct wiring of auxiliary equipment.

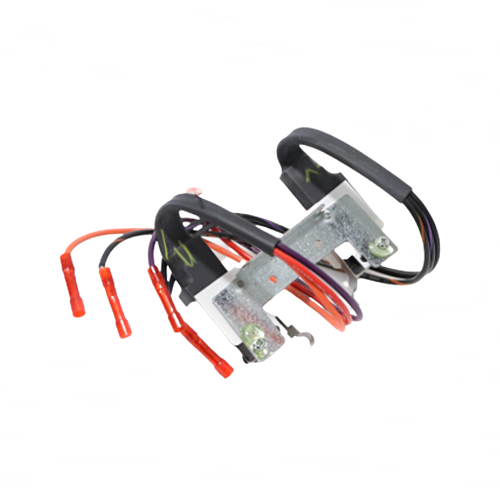

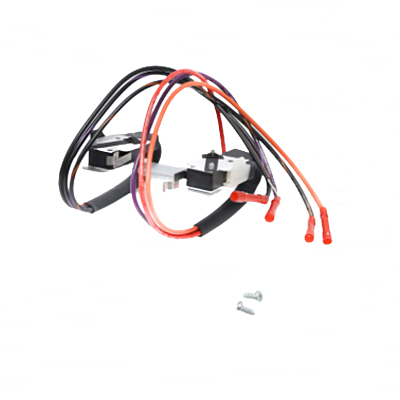

220736B Internal Auxiliary Switches for TRADELINE Modutrol IV Motors. Switches are actuated by cams in the motor. The cams can be set to operate the switches at any point in the motor stroke.
220736B—Includes two Spdt Micro Switch V3 snap acting switches.
MOUNTING: Switches factory-installed on bracket designed for mounting inside motor.
WIRING: Color-coded, 15 in. [381 mm] leadwires.
