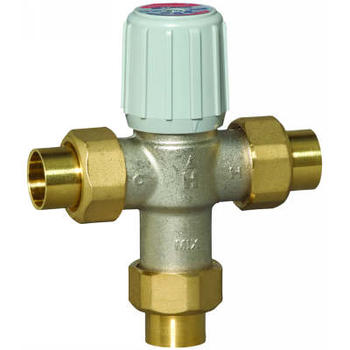

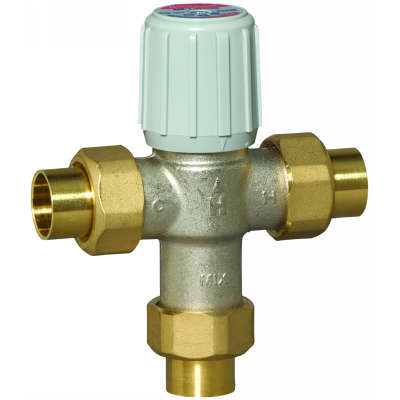

Honeywell AM100-US-1LF Mixing Valve 1/2" Sweat Union 70-145F

Name: Honeywell AM100-US-1LF Mixing Valve 1/2" Sweat Union 70-145F
Brand: Honeywell
SKU: AM100-US-1LF
Price: 152.28 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell AM100-US-1LF Mixing Valve 1/2" Sweat Union 70-145F

SKU: AM100-US-1LF

Brand:

Rating:

Quantity	Price	Stock
179 Usually Ships 1-2 Weeks	$152.28 /ea	179

Buy in Bulk & Save

Quantity	Price
4+	$144.67 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell AM100-US-1 Mixing Valve 1/2" Sweat Union 70-145F

The Honeywell AM-1 series accurately adjusts maintains and limits the hot water temperature to a desired setting selected by the user. In domestic water applications it offers scalding protection and bacteria growth control. By installing a Honeywell AM-1 mixing valve and raising water heater storage temperature setting and limiting mixed outlet water temperature to safe temperature more usable hot water is available. In heating applications it provides comfort and protects the equipment.

Features:

Dual purpose mixing or diverting valves
Constant water temperature under changing operating conditions
Reliable performance at minimum flow of 0.5 gpm
Proportional valve (simultaneous control of hot and cold water)
Temperature limit at any point
Flow reduction in seconds if cold water supply is interrupted
Nickel-plated brass construction
EPDM O-rings
All brass proportioning shuttle
Straight through design (hot and cold at the same level)
Max. pressure 150 psi (1034 kPa)
Max temperature 212 F (100 C)
Designed for easy maintenance and element replacement.
Teflon coated to prevent mineral build-up and extend life.
Tamper resistent design
Valve trapping not required AM-1 Union STD & C and AM1070
Models include check valves(hot/cold ports) ASSE CSA and IAPMO listed

Minimum Flow Rate	0.5 GPM
Maximum Safe Operating Pressure	150 PSI (1034 kPa)
Connection	1/2" Union Sweat (DN15)
Fluid Temperature	Cold Inlet 39F-80F (4C-27C); Hot Inlet 120F-180F (49C-82C); Mixed Outlet 70F-145F (21C-63C)
Capacity	3.9Cv
Body Material	Teflon-Coated, Nickel Plated, Low Lead Brass

Download Product Information:

Honeywell Lead Free Mixing Valve Installation Instruction

Honeywell Lead Free Mixing Valve Technical Datasheet
