Honeywell AM100C-1LF Mixing Valve 1/2" NPT

Name: Honeywell AM100C-1LF Mixing Valve 1/2" NPT
Brand: Honeywell Resideo
SKU: AM100C-1LF
Price: 152.42 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell AM100C-1LF Mixing Valve 1/2" NPT

SKU: AM100C-1LF

Brand:

Rating:

Quantity	Price	Stock
8 Usually Ships 2 - 3 Weeks	$152.42 /ea	8

Buy in Bulk & Save

Quantity	Price
4+	$144.80 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

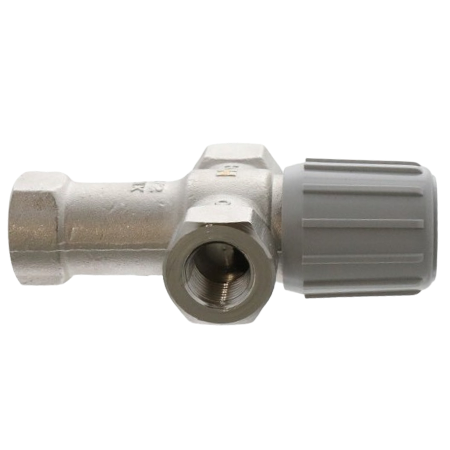

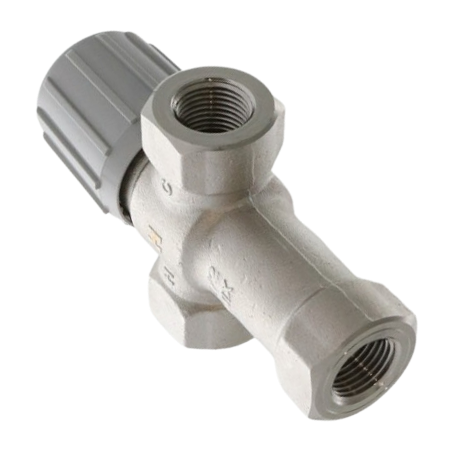

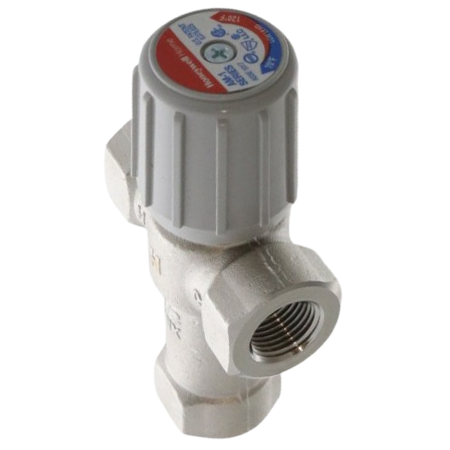

The AM100C-1LF is a mixing valve that has a 1/2" NPT connection size. It is constructed with a Teflon-coated low lead brass body with 70 to 120°F operating temperature, 3.2 Cv flow capacity, and 150 psi (1034 kPa) maximum pressure. ASSE, CSA, NSF, and IAPMO-listed.

The mixing valve is used to control, preserve, and restrict the hot water temperature to the desired setting allowing more water to be used and the home equipment to be protected. The AM-1-020RP and AM-1-025RP AM-1 repair kit replacement parts are also available.

Check out the available accessories:

AM1-TG100-US-LF Temperature Gauge
TG200-UT Thermometer 2" Dial
TG250-UT Thermometer 2.5" Dial
AM1-TAIL100-3UP-LF Tail Piece 1/2"

Body Material	Teflon-Coated, Nickle-Plated Low Lead Brass
Approvals	ASSE, CSA, NSF, and IAPMO-listed
Capacity	3.2 Cv
Maximum Safe Operating Pressure	150 psi (1034 kPa)
Minimum Flow Rate	0.5 gpm
Pipe Size	1/2" or DN15
Connection Type	NPT
Design	Straight-Through
O-Ring Material	EPDM Rubber
Shuttle Material	Teflon-Coated Low Lead Brass
