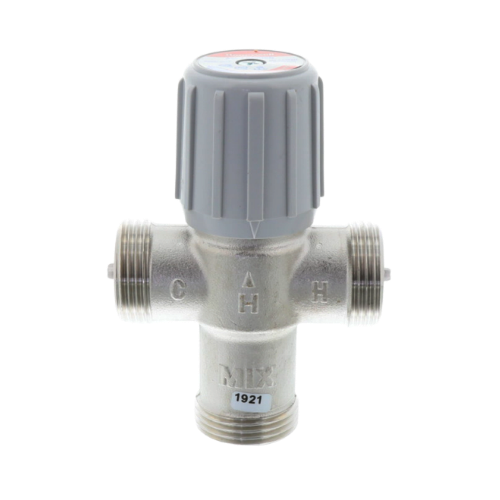

The Honeywell AM100-UPEX-1LF is a thermostatic mixing valve with a 1/2" union pex connection. The valve operating temperature ranges from 70 to 145F and has a valve flow coefficient of 3.9Cv.
The AM-1 Series offers a wide range of thermostatic mixing valves. Various connection types are available such as NPT, Union Sweat, Union CPVC, Union Threaded, Temperature Gauge, Union Pex, and Union Press Fittings. This valve protects home equipment and provides comfort by maintaining and limiting the hot water temperature settings.
The AM-1 Valve Series is designed to be durable, lead-free, and constructed with anti-scald and anti-chill protection features.
| Fluid Temperature Limits | Cold Inlet 39F to 80F (4C to 27C); Hot Inlet 120F to 180F (49C to 82C); Mixed Outlet 70F to 145F (21C to 63C) |
|---|---|
| Capacity | 3.9Cv |
| Pipe Size | 1/2" Union PEX |
| Maximum Safe Operating Pressure | 150 PSI (1034 kPa) |
| Minimum Flow Rate | 0.5 GPM |
| Operating Temperature | 70F to 145F |
| Dimensions | 6 x 3 x 5.1 |
