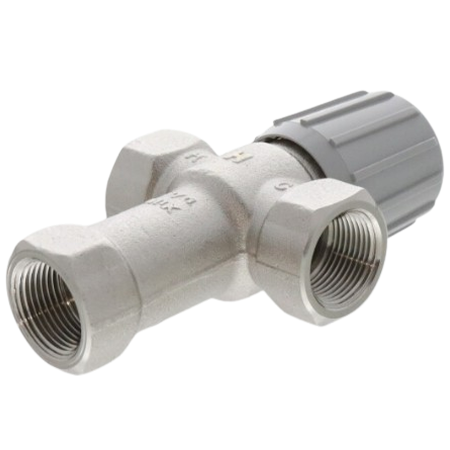

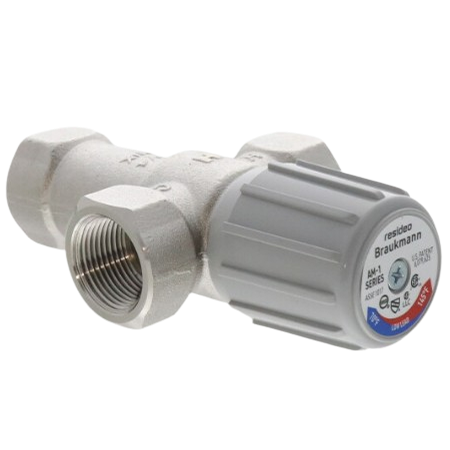

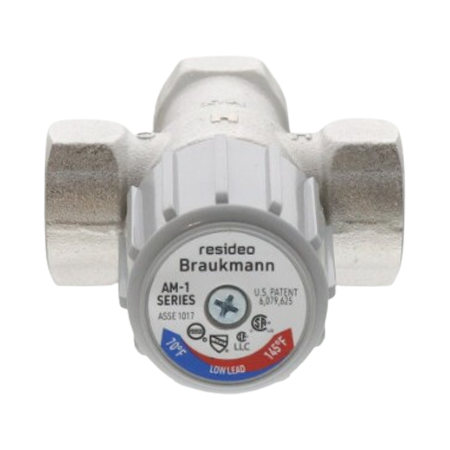

Honeywell AM101-1LF 3/4 Npt Mixing Valve 70-145F

Name: Honeywell AM101-1LF 3/4 Npt Mixing Valve 70-145F
Brand: Honeywell Resideo
SKU: AM101-1LF
Price: 139.52 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell AM101-1LF 3/4 Npt Mixing Valve 70-145F

SKU: AM101-1LF

Brand:

Rating:

Quantity	Price	Stock
17 Usually Ships 1 - 2 Weeks	$139.52 /ea	17

Buy in Bulk & Save

Quantity	Price
4+	$132.16 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The AM101-1LF is a mixing valve that has a 70 to 145°F operating temperature. It has a 3/4" NPT connection size, 3.8 Cv flow capacity, and a Teflon-coated, nickel-plated low-lead brass body construction that provides excellent durability. ASSE, CSA, NSF, and IAPMO-listed.

The mixing valve is designed for precise adjustments and limiting in hot water temperature to the preferred settings. The unit is easy to operate by loosening the screw, lifting the hand wheel, and turning it clockwise or counterclockwise to adjust the temperature.

Check out the available replacement parts:

AM-1-025RP Repair Kit
TS206-080 Thermostrip Temp Indicator
TG200-UT Thermometer 2" Dial
TG250-UT Thermometer 2.5" Dial
AMCU100 Union Model Check Valve
AMU200-RP Gasket Kit
AM1-TG101-US-LF Thermostatic Mixing Valve

Temperature Gauge Adapter/Thermowell Material	Low Lead Brass
Body Material	Teflon-Coated, Nickle-Plated Low Lead Brass
Operating Temperature	70 to 145°F
Approvals	ASSE, CSA, NSF, and IAPMO-listed
Pipe Size	3/4" NPT
Design	Straight-Through
Maximum Safe Operating Pressure	150 psi (1034 kPa)
Minimum Flow Rate	0.5 gpm
Flow Capacity	3.8 Cv
O-Ring Material	EPDM Rubber

Download Product Information:

Honeywell AM101-1LF Mixing Valve Technical Datasheet

Honeywell AM101-1LF Mixing Valve Brochure

Honeywell AM101-1LF Mixing Valve Installation Instructions
