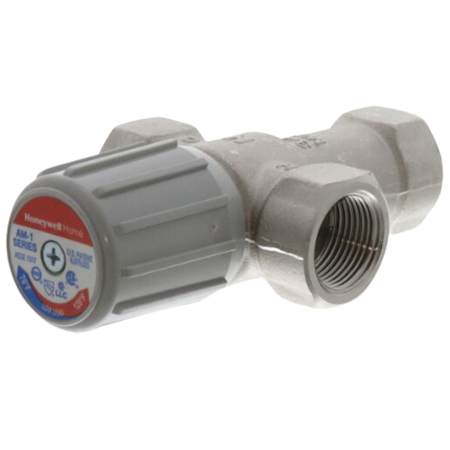

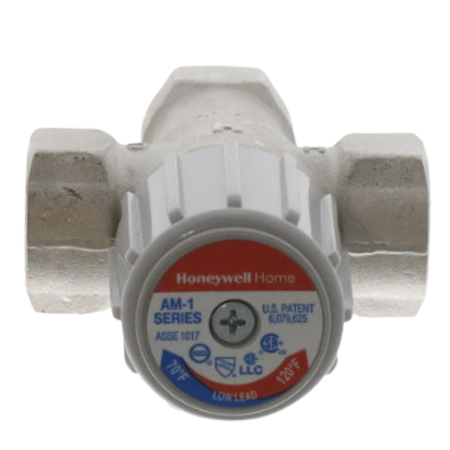

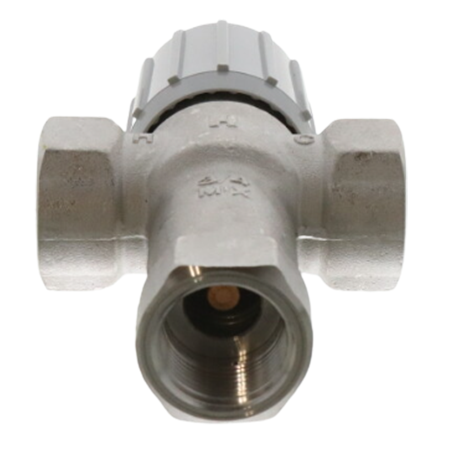

Honeywell AM101C-1LF Mixing Valves 3/4" NPT 70-120F 3 Way

Name: Honeywell AM101C-1LF Mixing Valves 3/4" NPT 70-120F 3 Way
Brand: Honeywell Resideo
SKU: AM101C-1LF
Price: 159.21 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell AM101C-1LF Mixing Valves 3/4" NPT 70-120F 3 Way

SKU: AM101C-1LF

Brand:

Rating:

Quantity	Price	Stock
5 Usually Ships 1 - 2 Weeks	$159.21 /ea	5

Buy in Bulk & Save

Quantity	Price
4+	$151.25 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The AM101C-1LF is a three-way mixing valve that has a 3/4" NPT connection size. It has a 70 to 120°F operating temperature range, 3.8 Cv flow capacity, and 150 psi (1034 kPa) maximum pressure. ASSE, CSA, and IAPMO listed.

The three-way mixing valve is used to maintain and provide accurate adjustment of temperature limits in hot water to the desired setting. The unit is easy to operate by lifting the handwheel and turning it to the specified temperature setpoint.

Check out the available replacement parts:

AM-1-020RP Repair Kit
AM1-TG101-US-LF Thermostatic Mixing Valve
TG200-UT Thermometer 2" Dial
G250-UT Thermometer 2.5" Dial

Body Material	Teflon-Coated, Nickle-Plated Low Lead Brass
Shuttle Material	Teflon-Coated Low Lead Brass
Flow Capacity	3.8 Cv
Maximum Safe Operating Pressure	150 psi (1034 kPa)
Minimum Flow Rate	0.5 gpm
Pipe Size	3/4" NPT
Operating Temperature Range	70 to 120°F
Approvals	ASSE, CSA and IAPMO listed
O-Ring Material	EPDM Rubber
Design	Straight-Through (hot and cold at the same level)

Download Product Information:

Honeywell AM101C-1LF Mixing Valve Installation Instructions

Honeywell AM101C-1LF Mixing Valve Technical Datasheet
