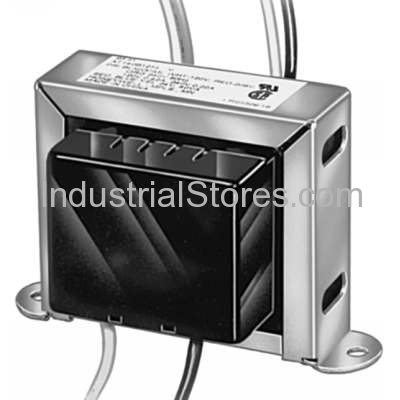

Foot mounted 120/208/240 Vac transformer with 9 in. lead wires.
Overview
Honeywell 50 VA general purpose transformers power 24Vac circuits.
Features
Color-coded lead wires for primary connections and screw terminals for secondary connections
Includes fixed 1/4 inch (6mm) male quick-connects (AT150A models only) or color-coded lead wires for primary and secondary connections
Meets Underwriters Laboratories Standard UL 1585
Identified Class 2 not wet, Class 3 wet
Product Specifications
Dimensions (in.)
1 11/16 in. high x 3 1/2 in. wide x 1 3/4 in. deep
Dimensions (mm)
43 mm high x 89 mm wide x 75 mm deep
Temperature Range (F)
-20 F to +105 F
Temperature Range (C)
-29 C to +41 C
Includes
Plastic end caps
Mounting
Foot-mounted
Electrical Ratings
Primary voltage--120 Vac, 208 Vac, 240 Vac; Secondary voltage--27.5 V.O.C.
Frequency
60 Hz
Approvals, Underwriters Laboratories Inc.
UL Component Recognized: B, D, E models. File# E14881
Approvals, Canadian Standards Association
CSA Certified: A & B models.
Tradeline Value
Tradeline
Electrical Connections (Primary)(in.)
9 in. leadwires with 1/4 in. male quick-connects
Electrical Connections (Primary)(mm)
229 mm leadwires with 1/4 in. male quick-connects with plastic (2) end covers
Electrical Connections (Secondary)(in.)
9 in. leadwires with 1/4 in. male quick-connects with plastic (2) end covers
Electrical Connections (Secondary)(mm)
229 mm leadwires with 6.4 mm male quick-connects with plastic (2) end covers
Electrical Ratings, Output
24 Vac at 50 VA
