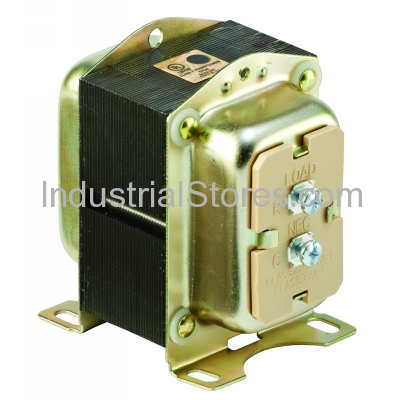

Foot mounted 480 Vac transformer with overload protection and 12 in. lead wires. Overview Honeywell 48 VA powers 24V air conditioning circuits and other applications that do not exceed the listed ratings. Features Meets NEC Class 2 not wet, Class 3 wet and UL 1585 requirements. Transformer marked NEMA Type E. Overload protection provided. Color-coded leadwires for primary connections. Product Specifications Dimensions (in.) 2 15/16 in. deep x 2 7/32 wide Dimensions (mm) 74.6 mm deep x 65.4 mm wide Temperature Range (F) -20 F to +105 F Temperature Range (C) -29 C to +41 C Includes Energy limiting overload protection Mounting Foot-mounted Electrical Ratings Primary voltage--480 Vac; Secondary voltage--26.5 V.O.C. Frequency 50 Hz; 60 Hz Approvals, Underwriters Laboratories Inc. UL Component Recognized. Approvals, Canadian Standards Association Certified NEMA Rating NEMA type E Electrical Connections (Primary)(in.) 12 in. leadwires Electrical Connections (Primary)(mm) 305 mm leadwires Electrical Connections (Secondary)(in.) 12 in. leadwires Electrical Connections (Secondary)(mm) 305 mm leadwires Electrical Ratings, Output 24 Vac at 48 VA
