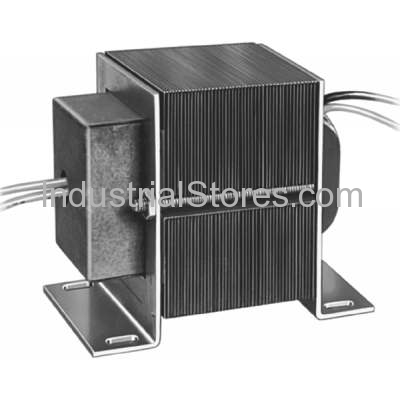

Foot-mounted 480 Vac transformer with 12 in. leadwires. Overview Honeywell 75 VA transformers powers 24 Vac air conditioning circuits and other applications that do not exceed the listed ratings. Features Meets NEC Class 2 not wet, Class 3 wet and U.L. 1585 requirements. Overload protection provided. Color-coded leadwires for primary connections. Product Specifications Dimensions (in.) 2 15/16 in. high x 2 3/16 in. wide x 3 5/16 in. deep Dimensions (mm) 75 mm high 56 mm wide x 84 mm deep Temperature Range (F) -20 F to +105 F Temperature Range (C) -29 C to +41 C Includes Internally fused secondary for overload protection. Mounting Foot-mounted Electrical Ratings Primary voltage--480 Vac; Secondary voltage--26.5 V.O.C. Frequency 50 Hz; 60 Hz Approvals, Canadian Standards Association Certified Electrical Connections (Primary)(in.) 12 in. leadwires Electrical Connections (Primary)(mm) 305 mm leadwires Electrical Connections (Secondary)(in.) 12 in. leadwires Electrical Connections (Secondary)(mm) 305 mm leadwires Electrical Ratings, Output 24 Vac at 75 VA
