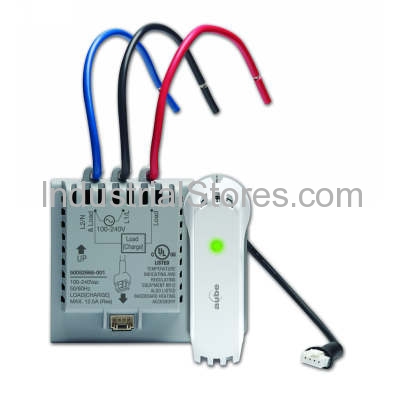

Electrical Heat Equipment Interface Mod.
Overview
Easily relocate line voltage thermostats or upgrade electric baseboard heaters with built-in thermostat without running new wires with EConnect™ wireless Line Volt Thermostat.
Features
Wireless Installation - eliminates opening walls for system or control upgrades
Precise Temperature Control - on the wall where it belongs, for optimal sensing and comfort
Electronic Programmable Thermostat - enables energy savings of up to 33%
User-friendly, Plain-language Interface - easily adjust your comfort settings
Compatible Wireless Accessories - for added comfort and convenience
Product Specifications
Application
Electric Heating; Baseboard heater; Convector or Fan-forced Heater
Dimensions (in.)
Relay: 3.03 in. high x 2.49 in. wide x 1.28 in. Deep; Antenna: 2.89 in. high x 2.63 in. wide x 1.16 in. Deep
Dimensions (mm)
Relay: 73 mm high x 63 mm wide x 29 mm Deep; Antenna: 71 mm high x 62 mm wide x 33 mm in. Deep
Includes
Aube Electrical Heat Equipment Interface, white and light almond antenna covers
Used With
YTA7210-AR-SPK EConnectTM thermostat kit
Mounting
Vertical
Electrical Ratings
Minimum Load: 0.4 A (resistive only) 100 W @ 240 Vac, 50 W @ 120 Vac; Maximum Load: 12.5 A (resistive only), 3000 W @ 240 Vac, 1500 W @ 120 Vac
Frequency
50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc.
Approved
Electrical Connections
6 in. (150 mm) tinned copper lead wires
Operating Humidity Range (% RH)
5 to 95% RH, non-condensing
Supply Voltage
100 to 240 Vac
Operating Temperature Range (F)
-4°F - 140°F
Operating Temperature Range (C)
-20°C - 60°C
Approvals, Federal Communications Commission
Approved
Color
Relay: Grey; Antenna: White or Light Almond
Switching Action
SPST
Switch Type
Relay
Power Method
Hardwired
External Sensors Available
Outdoor-- C7089R1013, optional
Parts Needed for Operation (not included) - Non-Zoned System
YTA7210-AR-SPK
