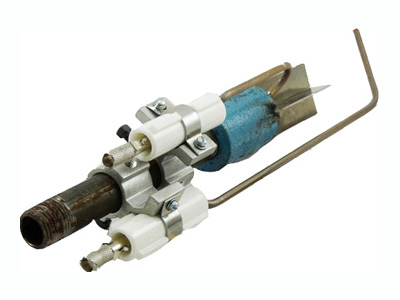

Honeywell C7005B1035 Gas Pilot Burner Assemblies

Honeywell C7005B1035 Gas Pilot Burner Assemblies
Images for general purposes only. Actual may be different than depicted.
Honeywell C7005B1035 Gas Pilot Burner Assemblies

Honeywell C7005B1035 Gas Pilot Burner Assemblies

SKU: C7005B1035
Rating:
* This Product is Now Obsolete
No Replacement Available
0
0
0
0
0
C7005B1035
The C7005A B Gas Pilot Burner Assemblies include a flame rod to prove the pilot flame. The assemblies are used with a suitable flame safeguard control on industrial or commercial gas burners or oil burners with gas pilots. FEATURES Used with Honeywell controls using the flame rectification principle. C7005A is for continuous pilot applications. It includes an insulated flame rod properly positioned relative to the flame retention type nozzle. C7005B is similar to C7005A but includes an ignition electrode suitable for automatic electric-spark ignition gas pilot applications. Individually mounted flame rod and ignition electrode in ceramic insulators allow the head assembly to fit inside a 3-inch pipe. Stainless steel fins on the flame retention type pilot head provide the correct ratio of flame rod area to ground area for maximum flame signal and are beneficial in stabilizing the pilot flame. Pilot flame retention nozzle and mixing tube are threaded internally 1/2-14 NPT and 3/8-18 NPT respectively and can be assembled with standard pipe fittings. Pilot can be installed in vertical horizontal or inclined position. Rajah connectors facilitate electrical connections.

Download Product Information:

Honeywell C7005B1035 Gas Pilot Burner Assemblies
