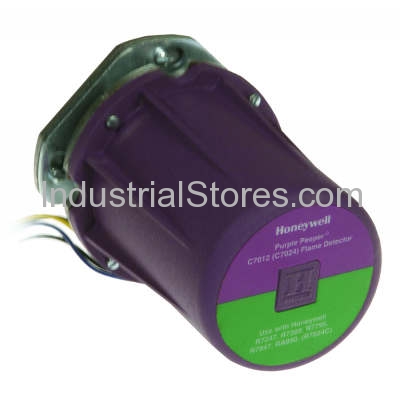

220 Vac Flame Sensor, Ultraviolet, Purple Peeper, Self-Checking.
Overview
Solid state electronic flame detectors for use with Honeywell Flame Safeguard controls and amplifiers. Sense ultraviolet radiation produced by combustion of gas, oil, coal or other fuels.
Features
Mount horizontally, vertically or at any angle in between.
Provide quick electrical hookup with threaded conduit fitting and color-coded leadwires.
Reduced nuisance shutdowns by wiring two in parallel.
C7012E1278 5 pin Brad Harrison type (formally 41307N) mating connector not supplied nor available through Honeywell.
C7012A,E meets NEMA 4 standards with viewing window rated to 20 psi.
C7012C,F has an explosion-proof housing for use in hazardous atmospheres with a viewing window rated to 100 psi.
Product Specifications
Application
Gas, Oil or Coal fired burners
Dimensions (in.)
5 1/4 in. diameter (includes mounting flange) x 7 7/32 in. long
Dimensions (mm)
133 mm diameter (includes mounting flange) x 183 mm long
Includes
Cast case and cover
Used With
Flame Amplifiers: R7247C, R7847C
Weight (lb)
4.25 lb
Weight (kg)
1.9 kg
Comments
Dynamic self-checking flame detector
Mounting
3/4 in. NPT
Electrical Ratings
220 Vac
Frequency
50 Hz
Electrical Connections
6 NEC Class 1 Color-coded lead wires.
Power Consumption
7.0 W
Approvals, Swiss RE
Acceptable
Approvals, Factory Mutual
Approved: Report No. 14740.01
Type
Ultraviolet, Purple Peeper, Self-Checking
Ambient Temperature Range (F)
-20 F to +175 F
Ambient Temperature Range (C)
-20 C to +79 C
Approvals, Others
DIN (Europe)
NEMA Rating
NEMA 4
Lead Length (in.)
96 in.
Lead Length (mm)
2438 mm
