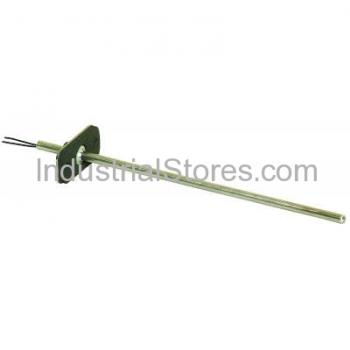

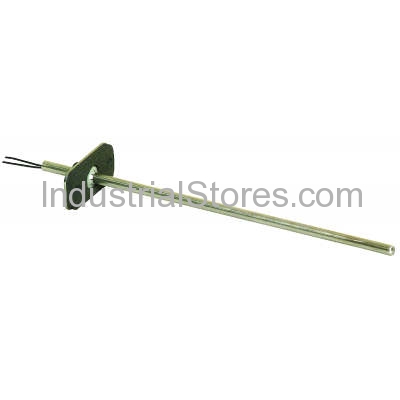

22.8K ohm Air Temperature Sensor, 6 in. zone, Operating range 40-150F.
Overview
Air Temperature Sensors function as primary and/or secondary sensors in electronic control systems.
Features
No settings or calibration required.
Solid state components not affected by dust or dirt.
Fast reacting.
Rugged aluminum insertion probe.
Mounts on duct or plenum surface with integral mounting flange, or in a 2 x 4 in. junction box.
Product Specifications
Application
Primary and/or secondary sensors in electronic control systems
Dimensions (in.)
1 in. high x 2 in. wide x 7 in. deep
Dimensions (mm)
25 mm high x 51 mm wide x 178 mm deep
Includes
6 in. leadwires
Used With
W7080
Comments
Quick response time. Sensor probe diameter is 1/4 in. (6 mm). 6 in. leadwires.
Item Type
Product
Mounting
Mounts on flat duct or plenum surface with integral mounting flange or in a 2 in. x 4 in. (51 mm x 102 mm) junction box.
Sensor
22.8 K ohm NTC @ 77 F
Operating Temperature Range (F)
40 F to 150 F
Operating Temperature Range (C)
4 C to 66 C
Shipping and Storage Temperature Range (F)
-30 F to +160 F
Shipping and Storage Temperature Range (C)
-34 C to +71 C
Insertion Length (in.)
6 in.
Insertion Length (mm)
152 mm
Ambient Temperature Range (F)
250 F Maximum
Ambient Temperature Range (C)
121 C Maximum
