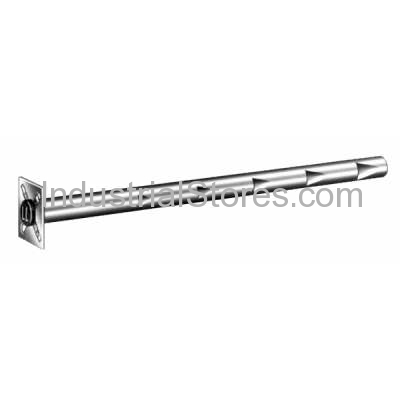

PT1000 Duct Averaging Temperature Sensor,13 in., 40-150F.
Overview
Averaging Duct Temperature Sensors are used to sense temperature in discharge duct.
Features
Use to troubleshoot system operation.
Platinum positive temperature coefficient sensor.
Factory calibrated; no settings or field calibration required.
Product Specifications
Application
Averaging Duct Temperature Sensors
Dimensions (in.)
1 13/16 in. high x 1 13/16 in. wide x 13 1/4 in. deep
Dimensions (mm)
46 mm high x 46 mm wide x 336 mm deep
Used With
Excel 500, T775 Series 2000
Comments
Recessed 1/4 in. (6 mm) quick-connect terminals. 3/4 in. (19 mm) diameter sensor probe.
Item Type
Product
Mounting
Discharge Duct
Sensor
PT1000, 1097 ohms @ 77 F PTC
Operating Temperature Range (F)
40 F to 220 F
Operating Temperature Range (C)
4 C to 104 C
Shipping and Storage Temperature Range (F)
-30 F to +150 F
Shipping and Storage Temperature Range (C)
-34 C to +66 C
Insertion Length (in.)
13 in.
Insertion Length (mm)
330 mm
Ambient Temperature Range (F)
250 F Maximum
Ambient Temperature Range (C)
121 C Maximum
