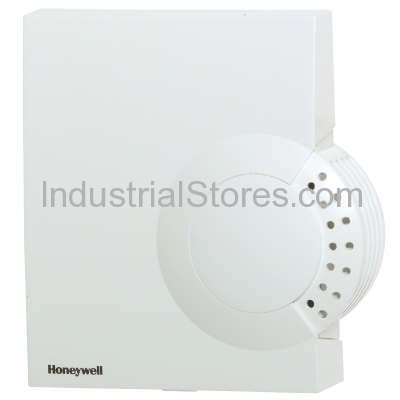

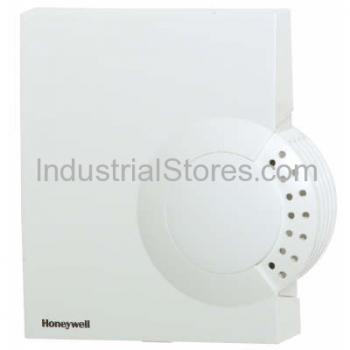

Duct Mount CO2 Sensor with no display,0-10 Vdc (fixed) output. Overview CO2 Sensors offer a fixed 0-2000ppm & fixed 0-10Vdc output, determine ventilation need with HVAC controllers and measure CO2 concentration in ventilated spaces or ducts. Used in ventilation & AC systems to control the amount of outdoor air supplied. Features Non-Dispersion-Infrared (NDIR) technology used to measure carbon dioxide gas. Gold-plated sensor provides long-term calibration stability. Fixed 0-2000ppm, fixed 0-10Vdc output. Used for CO2 based ventilation control (Demand Control Ventilation (DCV)). Automatic Background Calibration (ABC) algorithm based on long-term evaluation reduces required typical zero-drift check maintenance. Product Specifications Application Carbon Dioxide Sensor Dimensions (in.) 5 5/8 in. high x 3 5/16 in. wide x 1 13/16 in. deep x plus 8 in. long sensing tube Dimensions (mm) 142 mm high x 84 mm wide x 87 mm deep x plus 203 mm sensing tube Includes Honeywell Logo Item Type Product Mounting Duct mount Frequency 50 Hz; 60 Hz Electrical Connections Terminal block Sensor Non-dispersive Infrared (NDIR) Voltage 24 Vac (�20%) Operating Temperature Range (F) 32 F to 122 F Operating Temperature Range (C) 0 C to 50 C Relay Outputs None Timing Response--1 minute Accuracy 5% full scale Display None Sensor Range 0 to 2000 ppm, fixed Analog Current Output 0-10 Vdc fixed
