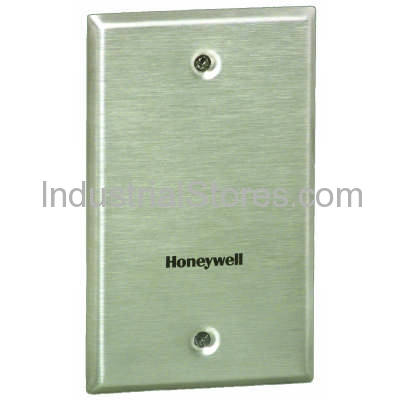

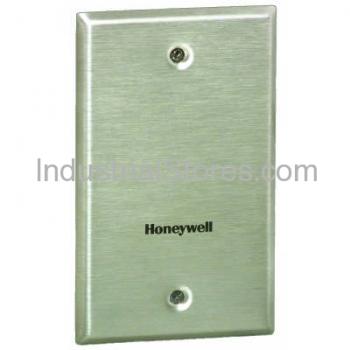

10K ohm NTC Type III Flush Mount Temperature Sensr, with logo.
Overview
C7772 Temperature Sensors are designed for the Excel 5000 family and other Honeywell controllers. They provide a resistive output signal and are well suited for low profile wall mounted applications.
Features
Low profile when mounted on industry standard utility conduit box.
Rugged, brushed stainless steel wallplate.
Integral foam pad isolates wallplate sensor from conduit box.
Insulated screw terminals ensure reliable field wiring connection.
Models available with a variety of resistive temperature sensor elements.
Product Specifications
Application
Low profile wall mounted where durability and tamper proof construction is desired
Dimensions (in.)
4 1/2 in. high x 2 3/4 in. wide
Dimensions (mm)
114 mm high x 70 mm wide
Used With
WEBs-AX I/O Modules
Comments
with Honeywell logo, looks very professional and facilitates finding sensor after installation
Item Type
Product
Mounting
Wall mount
Operating Humidity Range (% RH)
5 to 95% RH, non-condensing
Sensor
10 K ohm NTC Type III non-linear
Operating Temperature Range (F)
45 F to 99 F
Operating Temperature Range (C)
7 C to 37 C
Shipping and Storage Temperature Range (F)
-40 F to +150 F
Shipping and Storage Temperature Range (C)
-40 C to +65 C
