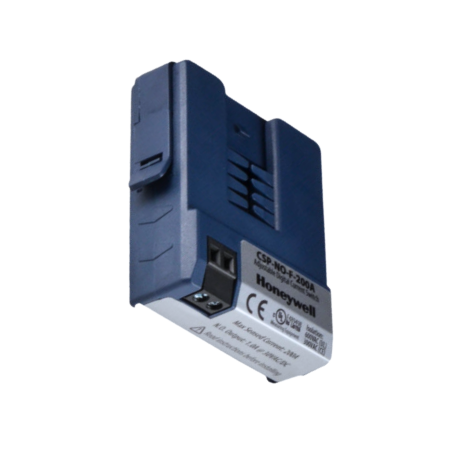

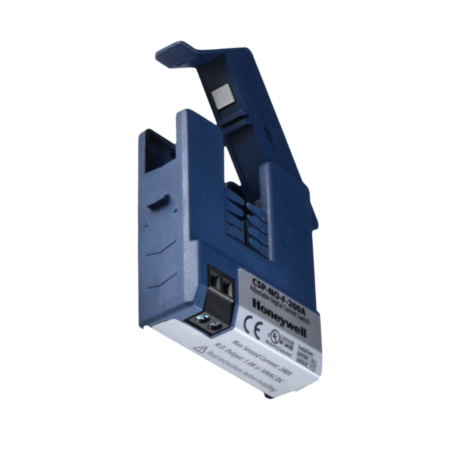

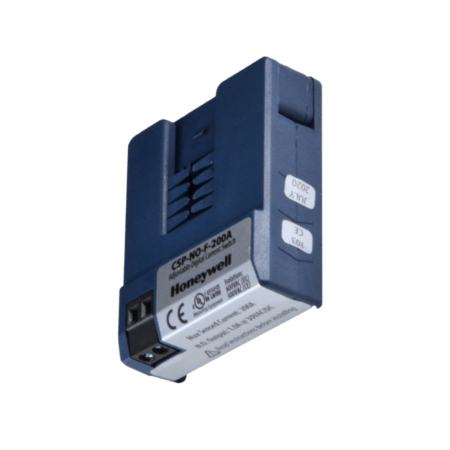

The Honeywell CSP-NO-F-200A is a normally open fixed split core current switch with a 0.35 to 200A detection range. It has 2.94” L x 2.23” W x 0.82” H dimensions. CE Marked and UL Listed.
This device provides accurate zero-crossing detection. It monitors a piece of equipment status, mechanical failure, preventative maintenance, and electrical load status on fans and pumps.
The CSP-NO-F-200A is a direct replacement for CP-O-F, CP-O-FL, and MCSP-F. Suitable for use in electrical systems. Installed on the line side of the power to the electrical equipment.
Check out available relay module for Honeywell CSP current switches:
| Model Number CR-12VDC-NC-10A CR-12VDC-NO-10A CR-24V-NC-10A CR-24V-NO-10A |
Description 12VDC 10A SPST Normally Closed 12VDC 10A SPST Normally Open 24V 10A SPST Normally Closed 24V 10A SPST Normally Open |
| Sensor Aperture | 0.75” |
|---|---|
| Sensor Power | Induced |
| Core Type | Split |
| Temperature Rating | -15 to 60°C |
| Output Type | NO, Solid-State FET |
| Maximum Output Rating | 1.0A at 30V AC/DC |
| Maximum Current | 200A |
| Trip Point | Fixed, 0.35A |
| Frequency | 50/60 Hz |
| Insulation Class | 600V RMS, Use on Insulated Conductors Only |
Download Product Information:
