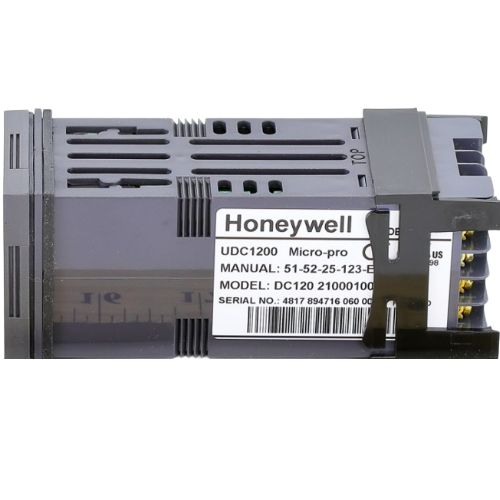

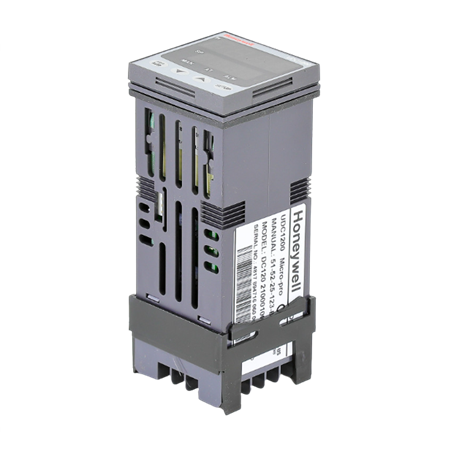

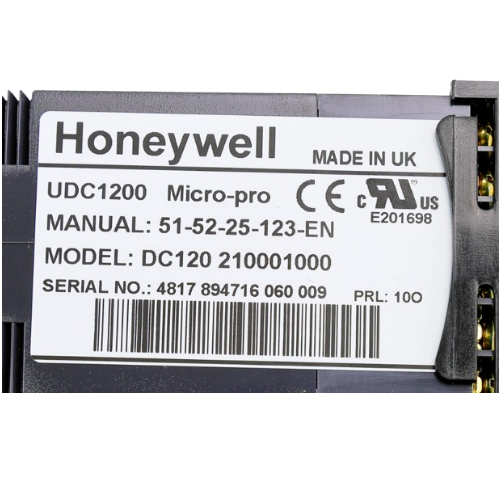

The Honeywell DC120210001000 is a UDC1200 model microprocessor-based digital controller.  Enclosed with a 4.33” gray UDC bezel deep case.  The controller has 4 digits dual display with 7 LED segments.  It can run within the voltage range of 90 to 264 VAC at 50/60 Hz frequency.

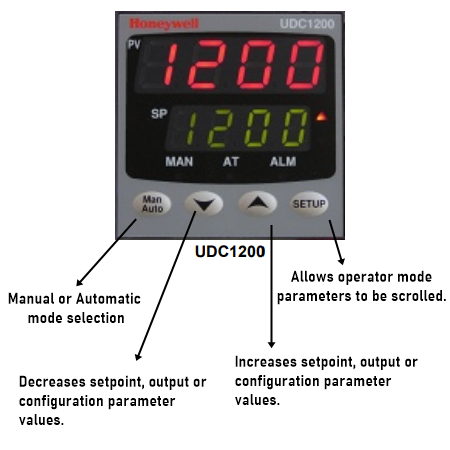

The UDC1200 Series Controllers are ideal for monitoring and controlling pressures and temperatures in various applications.  They feature a readable digital display and an easy configuration design.  The unit is configurable for PV and SP (non-adjustable), PV and SP (adjustable), PV and Ramping SP, and PV only.  Supported with PC software that allows quick configuration or to do diagnostics.

These Microprocessor-based Digital Controllers are applicable to ovens, furnaces, environmental chambers, packaging machines, and other equipment in the plastic, food, and beverage industries.  It is also suitable for UDC1000/1500 applications and installations.

See the following Accessories for UDC1200:


MODEL NUMBER	DESCRIPTION
51453391-501	Option Slot 1 Relay module
51453391-506	Option Slot 2 & 3 Relay module
51453391-509	Linear (mA/Vdc) module
51453391-511	24Vdc transmitter module (Slot 3 only)
51453391-512	Option Slot A RS485 communication module
46189016-501	UDC1000/1200 Fixing strap
