| Option Slot 1 | Option Slot 2 & 3 | Option Slot A | ||||
| 51453391-501 | Relay module | 51453391-506 | Relay module | 51453391-512 | RS485 communication module | |
| 51453391-502 | 10 Vdc SSR Driver module | 51453391-507 | 10 Vdc SSR Driver module | 51453391-513 | Digital Input module | |
| 51453391-504 | Linear (mA/Vdc) module | 51453391-509 | Linear (mA/Vdc) module | 51453391-515 | Basic Remote Setpoint module | |
| 51453391-510 | Dual Relay Board (Slot 2 only) | |||||
| 51453391-511 | 24Vdc transmitter module (Slot 3 only) | |||||
| Frequency | 50/60 Hz |
|---|---|
| Voltage | 90 to 264 VAC |
| Power Consumption | 4W |
| Front Panel Sealing | NEMA 3 / IP66 |
| Approvals | UL, FM, and CE |

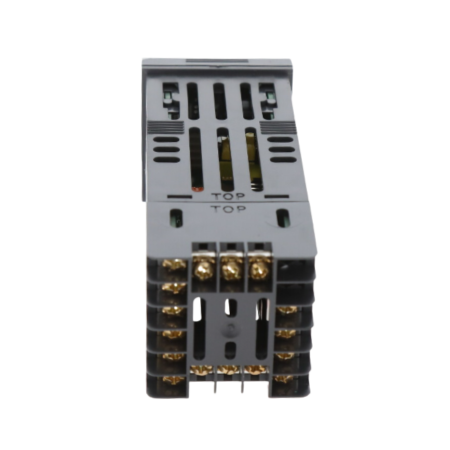

| Wiring Connection | Rear Screw Terminals |
| Accuracy | 0.1% of Span ± 1 LSD |
| Maximum Relative Humidity | 20-95% Non-Condensing |
| Temperature Stability | 0.01 of Span per °C |
| Ambient Temperature Limit | 0 to 55°C (32 to 131°F) |
By Mark
from Lynnville IA
Yes, I would recommend this product to a friend or co-worker
What we need at a good value.
By Blanca
from
Yes, I would recommend this product to a friend or co-worker
Q & A: Ask the Questions, share answers
Do you have questions about this product?
Have an answer? Click Here
Based on the available Honeywell documentation, the temperature limit is adjusted through the controller menu using Select mode and Setup mode on the UDC1200 platform. The literature also confirms that the UDC1200 limit controller can be configured as either a high limit or a low limit.
However, we do not have a clearly DC120L specific step by step programming sequence for setting the limit value. Because this is a safety shut off control, we strongly recommend using the official model specific user manual or having the controller reviewed by a qualified technician familiar with your equipment, application, and local codes and safety standards before making changes.
