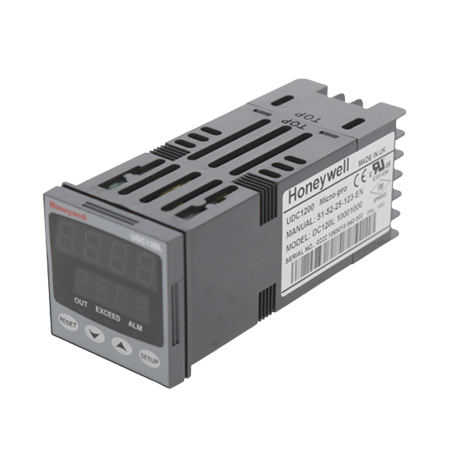

The Honeywell DC120L10001000 is a microprocessor-based universal digital controller that runs on 90 to 264V at 50/60 Hz.  It features a wide dual 4-digit display that has 7 LED segments and an easy to press keypad buttons providing quick and accurate controls.  CE-marked, UL-recognized, and FM-approved.

The UDC1200 Series Controllers are used for monitoring and regulating temperatures, pressures, and levels.  Suitable for environmental chambers, furnaces, ovens, and packaging machine applications, in the plastic, food, & beverage industries.  The unit can be configured for PV and SP(non-adjustable), PV and SP(adjustable), PV and Ramping SP, and PV only.  Supports PC software that allows configuration and executes diagnostics.

The microprocessor-based digital controller has a universal input that can be installed with thermocouples, RTDs, current, and voltage linear inputs.  It is also compatible with UDC1000/1500 applications.

Check out the following accessories for UDC1200:


Option Slot 1		Option Slot 2 & 3		Option Slot A
51453391-501	Relay module	51453391-506	Relay module	51453391-512	RS485 communication module
51453391-502	10 Vdc SSR Driver module	51453391-507	10 Vdc SSR Driver module	51453391-513	Digital Input module
51453391-504	Linear (mA/Vdc) module	51453391-509	Linear (mA/Vdc) module	51453391-515	Basic Remote Setpoint module
		51453391-510	Dual Relay Board (Slot 2 only)
		51453391-511	24Vdc transmitter module (Slot 3 only)



Others
51453391-514	PC Software (includes the cable)
46189016-501	Product Manual English (8 1/2 x 11)
51-52-25-122-FR	Product Manual French (8 1/2 x 11)
46189016-501	UDC1000/1200 Fixing strap
46189018-501	UDC1000/1200 Replacement case
46189025-501	DIN Rail Adaptor Kit
