Honeywell DC2800EE1L01002000 Universal Digital Controller DC2800-EE-1L0-100-200-00-0

Name: Honeywell DC2800EE1L01002000 Universal Digital Controller DC2800-EE-1L0-100-200-00-0
Brand: Honeywell
SKU: DC2800EE1L01002000
Price: 1724.01 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell DC2800EE1L01002000 Universal Digital Controller DC2800-EE-1L0-100-200-00-0

SKU: DC2800EE1L01002000

UNSPSC: 41112205

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 2 - 4 Weeks	$1,724.01 /ea	1

Add to Cart

Add to Wishlist

The DC2800EE1L01002000 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Honeywell DC2500EE1L00100100 Universal Digital Controller DC2500-EE-1L00-100-10000-00-0	DC2500EE1L00100100 Brand Honeywell

Add to Cart

Add to Wishlist

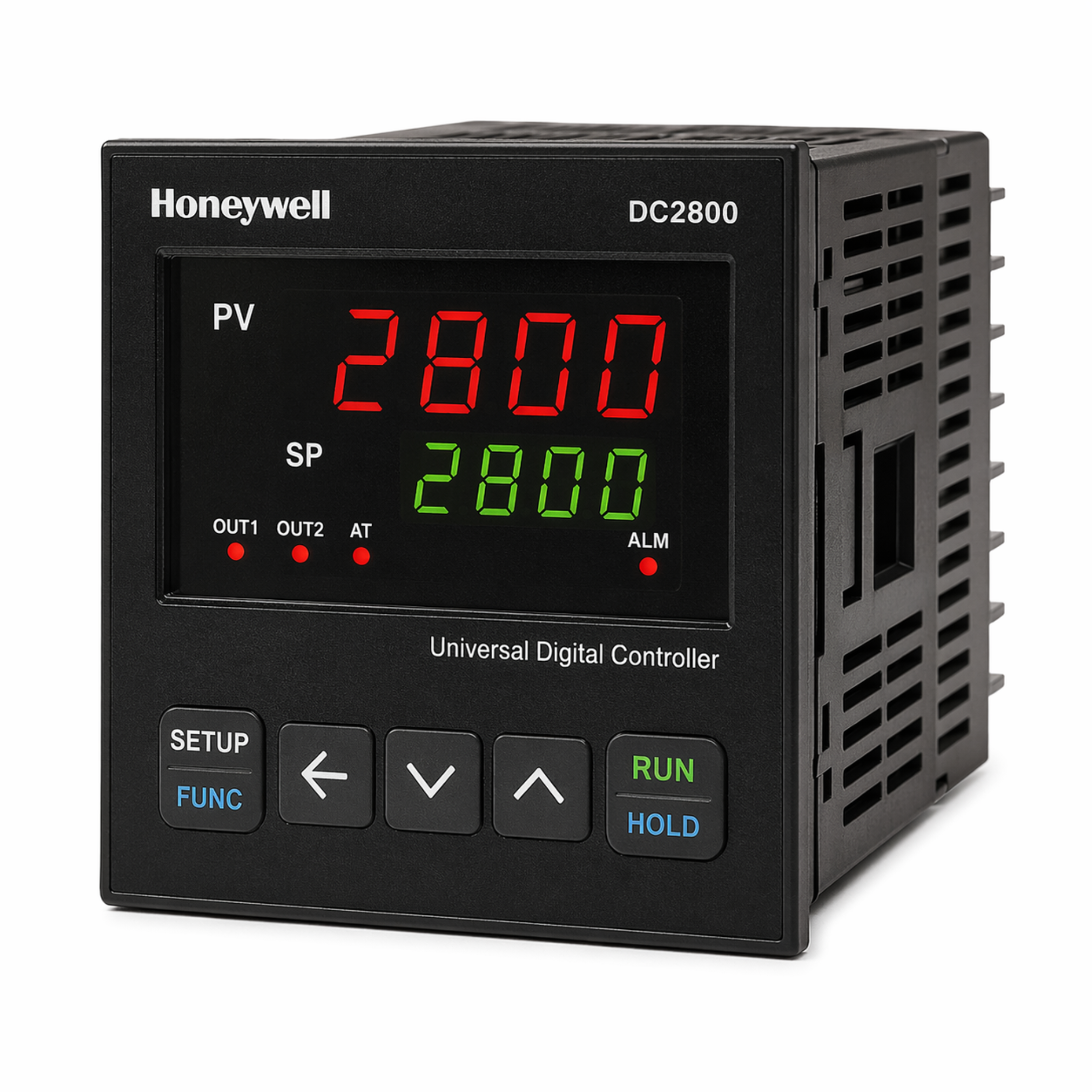

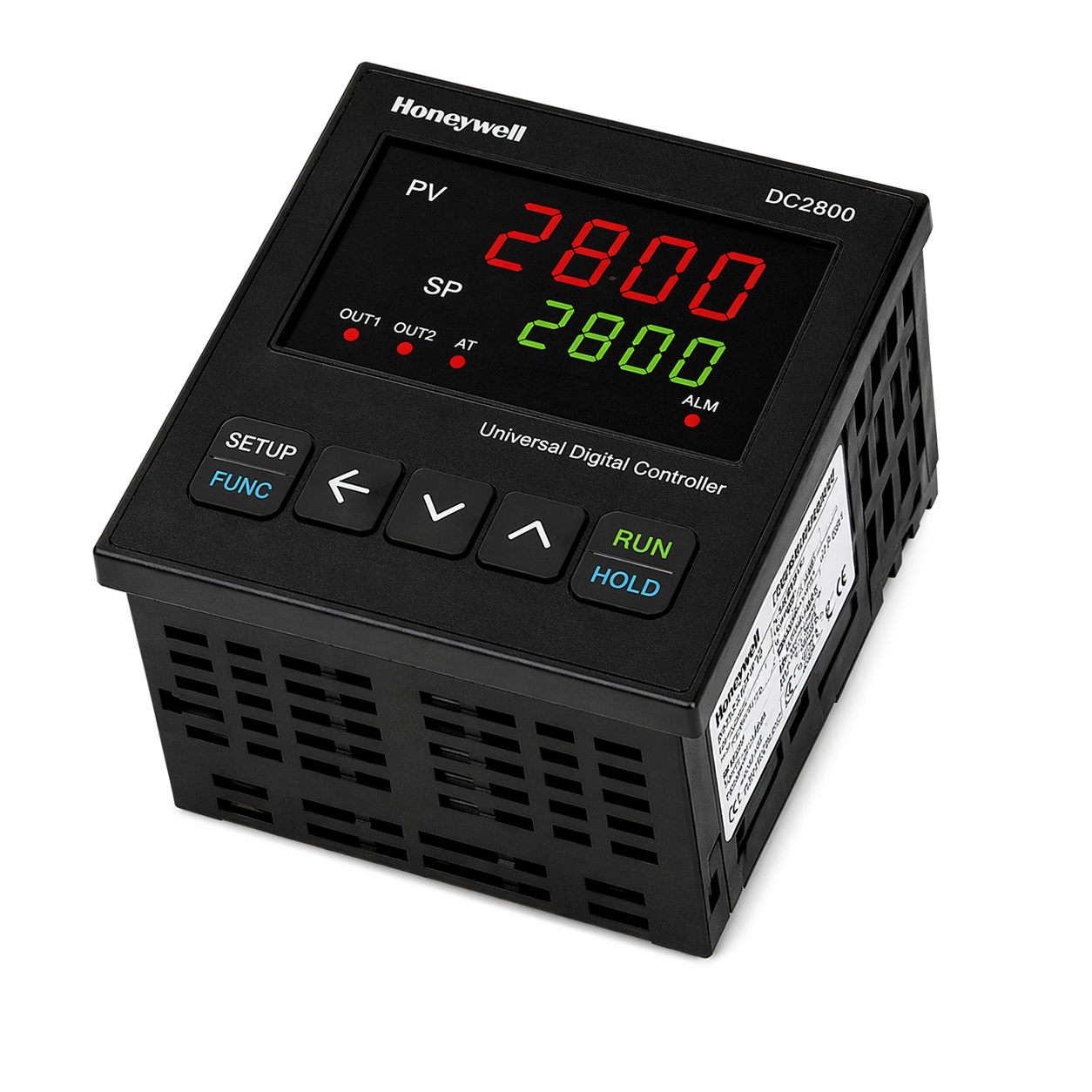

Honeywell DC2800EE1L01002000 Universal Digital Controller is a 1/4 DIN panel-mounted process controller built for precise temperature and industrial process control applications.

This UDC2800 model features two universal analog inputs, 0.15% typical accuracy, fast 100 ms scanning, and support for one or two control loops for OEM panels, furnace systems, and industrial automation use. Advanced control features help simplify setup, improve process stability, and support reliable day-to-day operation.

Honeywell DC2800EE1L01002000 directly replaces DC2500EE1L00100100 Universal Digital Controller.

Benefits for this digital controller include:

Flexible application fit	Easier commissioning
Reduced setup time	Dependable process performance
Compact industrial footprint	Universal power input
Jumper-free configuration	Configurable alarms
Remote digital input functions	Field-upgrade capability
Practical for replacement or upgrade applications	Scalable process control without added complexity
1/4 DIN size	Panel mounting
Two universal analog inputs	Up to four output types
Two digital inputs	Optional Modbus communications
Optional Ethernet communications	Standard Bluetooth communication
NEMA 4X/IP66 front protection	Universal 90 to 264 Vac power input

Current Outputs	4-20 mA or 0-20 mA Configurable
Mounting Size	1/4 DIN, panel-mounted
Approvals	UL Listed and CSA Certified; CE, FCC, IC standard
Scan Rate	100 ms, with both analog inputs sampled 10 times per second
Digital Inputs	2 Isolated Digital Inputs
Accuracy	0.15% typical full-scale input accuracy
Analog Inputs	2 Universal Analog Inputs
Power Supply	Universal 90 to 264 Vac, 50/60 Hz; Optional 24 Vac/dc

Download Product Information:

Honeywell DC2800EE1L01002000 Universal Digital Controller Technical Data Sheet
