10 inch Single Blade Round Damper for use with Integral actuator ML6161A2009.
Overview

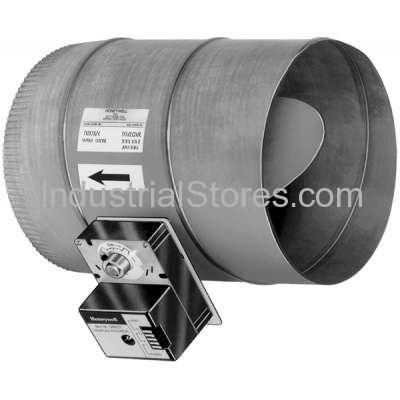

The DM7600 Commercial Zone Damper is used in zoning systems to control airflow in a round duct. A Honeywell ML6161 or ML7161 Direct Coupled Actuator is factory mounted to the damper to simplify field installation.
Features
Neoprene seal for tight closing and low leakage.
Oilite bearings for long life.
90 degree damper travel for a variety of applications.
Magnetic coupling requires no limit switches or mechanical stops.
Product Specifications
Application
heating, cooling, ventilating
Temperature Range (F)
32 F to 130 F
Temperature Range (C)
0 C to 54 C
Frequency
50 Hz; 60 Hz
Voltage
24 Vac
Timing
90 sec
Size (in.)
10 in. diameter
Size (mm)
254 mm diameter
Damper Type
Single-blade, round
Motor
SPDT Floating, ML6161A2009
Maximum Approach Velocity (ft/ min)
2500 ft/min
Input Signal
SPDT Floating
