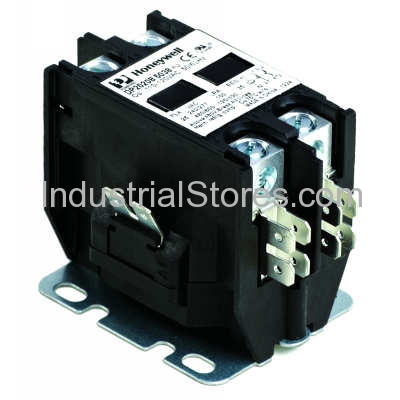

24 Vac 1 Pole Deluxe Definite Purpose Contactor.
These electromagnetically-operated Definite Purpose Contactors provide switching for starting induction motors.
Features
Meets ARI-780 Standard at started ratings (500,000 cycle mechanical life, 200,000 cycle electrical life and 10,000 cycle recycle life); the most demanding ARI requirement.
Silver cadmium oxide contacts provide long life under demanding duty cycles.
Low profile design allows for more wiring room.
Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
Product Specifications
Application
PowerPro Definite Purpose Contactor
Dimensions (in.)
2.2 in. high x 2.5 in. wide x 3.31 in. deep
Dimensions (mm)
56 mm high x 59 mm wide x 84 mm deep
Item Type
Product
Frequency
50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc.
Component Recognized: File No. 14480, Guide No. NLDX2
Approvals, Canadian Standards Association
Certified: File No. LR6535
Electrical Connections
lug connectors
Temperature Ratings (C)
-20 C to +65 C
Temperature Ratings (F)
-4 F to +149 F
Switching
SPST
Contact Ratings (AFL)
25 A @ 240/277 Vac
Contact Ratings (resistive)
30 A @ 240/277 Vac, 480 Vac, 600 Vac
Poles
1 with shunt
Contact Connections (coil)
1/4 in. quick-connects
Coil Ratings Voltage
24 Vac
