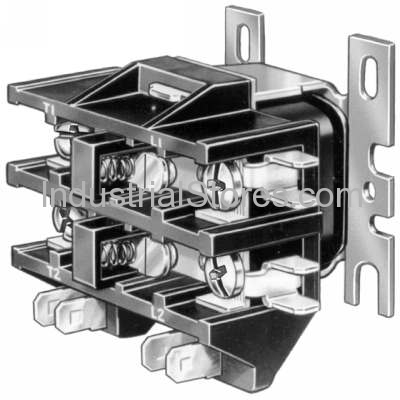

120Vac 2 Pole Definite Purpose Contactor.
Overview
These electromagnetically-operated Definite Purpose Contactors provide switching for starting induction motors.
Features
Silver cadmium oxide contacts provide long life under demanding duty cycles.
Low profile design allows for more wiring room.
Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
Product Specifications
Application
Economy Definite Purpose Contactor
Dimensions (in.)
2.2 in. high x 3.31 in. wide x 2.17 in. deep
Dimensions (mm)
56 mm high x 84 mm wide x 55 mm deep
Item Type
Product
Frequency
50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc.
Component Recognized: File No. 14480, Guide No. NLDX2
Approvals, Canadian Standards Association
Certified: File No. LR6535
Electrical Connections
#10-32 combination head screws
Temperature Ratings (C)
-20 C to +65 C
Temperature Ratings (F)
-4 F to +149 F
Switching
DPST
Contact Ratings (AFL)
30 A @ 240/277 Vac, 480 Vac, 600 Vac
Contact Ratings (resistive)
40 A @ 240/277 Vac, 480 Vac, 600 Vac
Poles
2
Contact Connections (coil)
1/4 in. quick-connects
Coil Ratings Voltage
120 Vac
