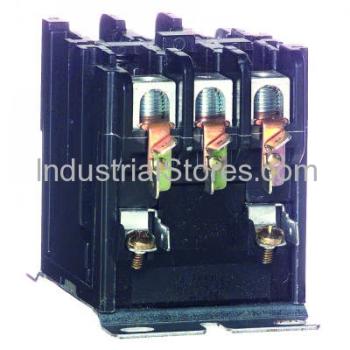

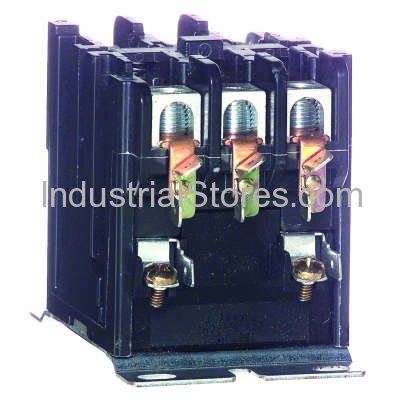

24 Vac 3 Pole Contactor.
Overview
These three pole definite purpose electromagnetically operated contactors provide switching for starting of induction motors.
Features
Shrouded coils on 3 pole (25A to 60A) models protect the coil from harsh environment factors.
Moisture proof epoxy is used to encapsulate the 3 pole 75A through 120A coils.
Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
Traditional design meets many needs.
Full array of replacement coils, contact sets and accessories available.
Product Specifications
Application
PowerPro Definite Purpose Contactor
Dimensions (in.)
3.1 in. high x 3.62 in. wide x 2.4 in. deep
Dimensions (mm)
79 mm high x 92 mm wide x 61 mm deep
Item Type
Product
Frequency
50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc.
Component Recognized: File No. 14480, Guide No. NLDX2
Approvals, Canadian Standards Association
Certified: File No. LR6535
Electrical Connections
lug connectors
Temperature Ratings (C)
-20 C to +65 C
Temperature Ratings (F)
-4 F to +149 F
Switching
DPST
Contact Ratings (AFL)
40 A @ 240/277 Vac, 480 Vac, 600 Vac
Contact Ratings (resistive)
50 A @ 240/277 Vac, 480 Vac, 600 Vac
Poles
3
Contact Connections (coil)
1/4 in. quick-connects and #6 screws
Coil Ratings Voltage
24 Vac
