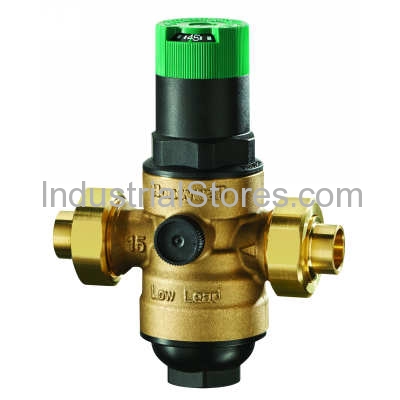

1 1/4 IN. "DIALSET" FEMALE NPT SINGLE UNION, INTERNALLY THREADED-PRV. Overview The Honeywell DS06 Dial Set� Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only). Features Built-In Dial-Set�- no guage is needed to install or set static pressure. Noncorroding Unitized Cartridge - contains all working parts and is easily replaceable Outlet adjustment range of 25 PSI to 90 PSI make it suitable for household, commercial, industrial and turf-and-irrigation applications. Install it just about anywhere. The internal and external threading allows for use in thread-by-thread, singleunion or double-union configurations. 1/4" NPT tap accessible from both sides to validate output Built in strainer to simplify maintenance Approvals - ASSE 1003, IAPMO, CSA, Low Lead Compliant Product Specifications Dimensions (in.) 8 5/8 IN. High x 6 IN Long Dimensions (mm) 218mm High x 152mm Long Item Type Product Approvals, Canadian Standards Association Certified (B356-10) Operating Temperature Range (F) 140 F Maximum Operating Temperature Range (C) 60 C Maximum Connection Type Femaile NPT Threaded Inlet & Outlet Externally threaded for Unions Pipe Size (inch) 1 1/4 IN. Pipe Size (DN) DN32 Valve Type Pressure Regulating Valve Materials (Body) Bronze (body), Fabric Reinforced Diaphragm, Stainless Steel and Engineered Thermoplastics. Outlet Pressure Adjustment Range (psi) 25-90 PSI Max. Inlet Pressure Rating (psi) 250 PSI Gauge Tap 1/4 in. NPT (two, one on each side of body). Calibrated Adjustment Dial YES Reducing Ratio 10:1 Maximum Union Fittings Single-Union Threaded Approvals, ASSE Certified 1003-2027 Approvals, IAPMO Listed
