| Accessories | Replacement Parts | ||
| Part Number | Description | Part Number | Description |
| 0900748 | Sump O-Ring | AF11S-112A | Screen Kit 100 Micron |

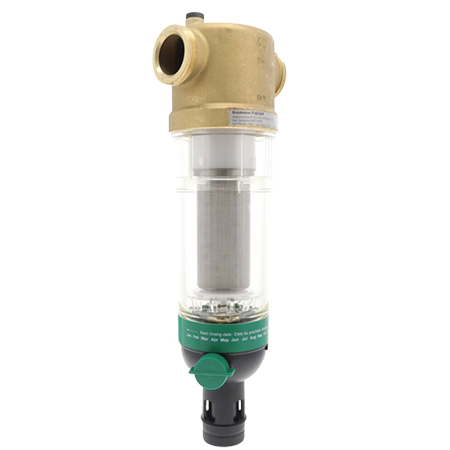

| AF11S-112B | Screen 20 Micron | KF11S-112A | Clear Plastic Sump |
| AF11S-112C | Screen Kit 50 Micron | KH11S-1A | Ball Valve |
| AF11S-112D | Screen Kit 200 Micron | ||
| FT09RS-112A | Bronze Sump | ||
| MV876B1018 | Automatic Motorized Backwash Control | ||
| Screen Material | Stainless Steel |
|---|---|
| Flow Capacity | 24.4 Cv |
| Maximum Temperature | 104°F (40°C) |
| Body Material | Brass |
| Maximum Inlet Pressure | 232 psi |
| Minimum Inlet Pressure | 22 psi |

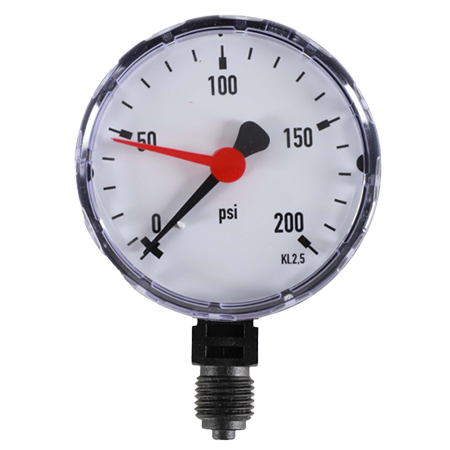

| Gauge Pressure Range | 200 psi |
| Internal Construction | Acetal Copolymer |
| Connection Size | 1-1/2" NPT |
| Screen Size | 100 microns |
