Honeywell L8148A1017 Multifunction Gas Aquastat

Name: Honeywell L8148A1017 Multifunction Gas Aquastat
Brand: Honeywell Resideo
SKU: L8148A1017
Price: 297.27 USD
Availability: InStock

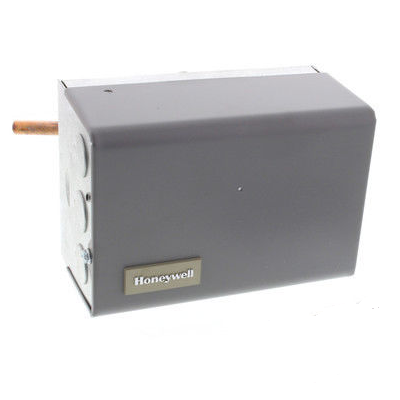

Images for general purposes only. Actual may be different than depicted.

Honeywell L8148A1017 Multifunction Gas Aquastat

SKU: L8148A1017

UPC: 8526705508

Brand:

Rating:

Quantity	Price	Stock
195 Usually Ships 1-2 Weeks	$297.27 /ea	195

Add to Cart

Add to Wishlist

The L8148A1017 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Carrier 3500012308 Aquastat Relay	3500012308 Brand Carrier

Add to Cart

Add to Wishlist

Honeywell L8148A1017 High Limit Aquastat Relay 140-240F with 8-degree Fixed Differential

Immersion-type controllers that combine high limit protection with switching relay control of burner and circulator motors.

Features:

High limit opens burner circuit only.
Select models include transformer and accessory terminals for adding a remote low limit controller.
Case available for horizontal or vertical mounting.
Requires a 24 Vac thermostat with heat anticipator set at 0.2A.
TRADELINE models include well adapter, tube of heat conductive compound and range stops..

Voltage and Frequency	120 V & 60 Hz
Insertion Length	3-3/8"
Maximum Pressire on Immersion Well	255 PSI
Maximum Bulb Temperature	40Â°F higher than setpoint, or up to 265Â°F (23Â°C higher than setpoint, or up to 129Â°C).
Approvals	Underwriters Laboratories Inc. Listed: File No. MP466, Guide No. MBPR (models with well); Guide No. MBPR2 (models without well). Canadian Standards Association Certified: File No. LR1620, Guide No. 400-E-O. ANSI Miswiring: Models with 1/4 in. tab terminal

Download Product Information:

Honeywell L8148A1017 Multifunction Gas Aquastat Data Sheet

Honeywell L8148A1017 Multifunction Gas Aquastat Installation Manual
