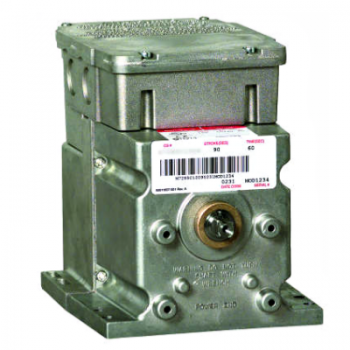

Honeywell M6194D1017 Modulating Motor 24V

Name: Honeywell M6194D1017 Modulating Motor 24V
Brand: Honeywell
SKU: M6194D1017
Price: 1548.39 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell M6194D1017 Modulating Motor 24V

SKU: M6194D1017

Brand:

Rating:

Quantity	Price	Stock
4 Usually Ships 1-2 Weeks	$1,548.39 /ea	4

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

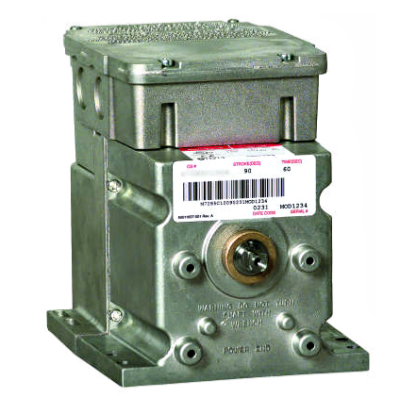

Honeywell M6194D1017 Modulating Motor 24V

Series 61 Modutrol IV™ Motor non-spring return floating control motor used with controllers that provide a switched spdt or floating output to operate dampers or valves.

Features:

Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position.
Motor and circuitry operate from 24 Vac.
Quick-connect terminals are standard--screw terminal adapter is available.
Adapter bracket for matching shaft height of older motors is available.
Motors have field adjustable stroke (90 to 160 degrees).
Integral auxiliary switches are available factory mounted, or can be field added.
All models have dual shafts (slotted and tapped on both ends).
All models have auxiliary switch cams.
Fixed torque throughout the entire voltage range.
Motors are designed for either normally open or normally closed valves and dampers.

Application	Electric
Dimensions	6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
Frequency	50 Hz, 60 Hz
Power Consumption Driving	15 VA
Temperature Range	-40 to 150F

Download Product Information:

Honeywell M6194D1017 Modutrol IV Motors Data Sheet
