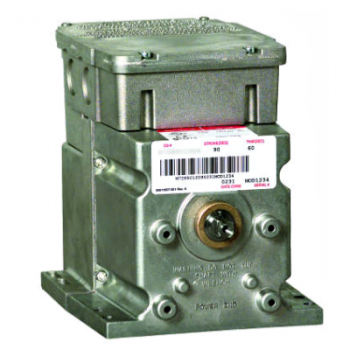

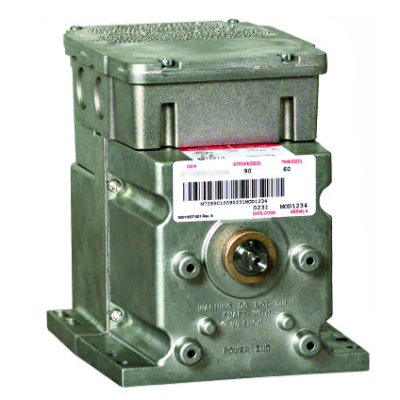

Honeywell M6285F1001-F Floating Salve Motor 24V Spring Return

Name: Honeywell M6285F1001-F Floating Salve Motor 24V Spring Return
Brand: Honeywell
SKU: M6285F1001-F
Price: 1972.29 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell M6285F1001-F Floating Salve Motor 24V Spring Return

SKU: M6285F1001-F

Brand:

Rating:

Quantity	Price	Stock
2 Usually Ships 1-2 Weeks	$1,972.29 /ea	2

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell M6285F1001-F Floating Salve Motor 24V Spring Return

The Series 62 Modutrol IV Motor non-spring return floating control motor is used with controllers that provide a switched spdt or floating output to operate dampers or valves. The motor also has an internal electrically isolated feedback potentiometer that provides indication of the motor shaft position some models can be used for slaving Series 90 Motors.

Features:

Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position.
Motor and circuitry operate from 24 Vac.
Quick-connect terminals are standard--screw terminal adapter is available.
Adapter bracket for matching shaft height of older motors is available.
Motors have field adjustable stroke (90 to 160 degrees).
Integral auxiliary switches are available factory mounted, or can be field added.
All models have dual shafts (slotted and tapped on both ends).
All models have auxiliary switch cams.
Fixed torque throughout the entire voltage range.
Motors are designed for either normally open or normally closed valves and dampers.
Include electrically isolated feedback potentiometer that provides shaft position indication. -S models with non-linear feedback are for slaving applications only

Application	Electric
Dimensions	6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
Frequency	50 Hz, 60 Hz
Power Consumption Driving	15 VA
Temperature Range	-40 to 150F

Download Product Information:

Honeywell Series 61 & 62 Modutrol IV Motors Data Sheet
