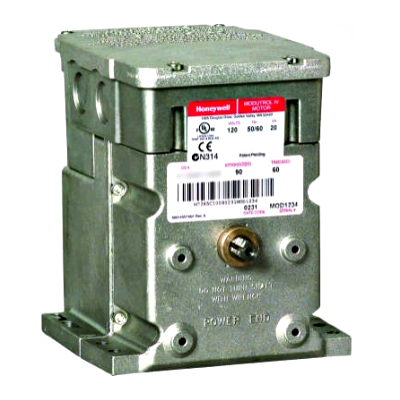

Honeywell M7164G1030 Actuator 120V Normally Open

Name: Honeywell M7164G1030 Actuator 120V Normally Open
Brand: Honeywell
SKU: M7164G1030
Price: 863.03 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell M7164G1030 Actuator 120V Normally Open

SKU: M7164G1030

Brand:

Rating:

Quantity	Price	Stock
4 Usually Ships 1-2 Weeks	$863.03 /ea	4

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell M7164G1030 Actuator 120V Normally Open

Series 71 Modutrol IV Motor non-spring return motor is used to control dampers and valves. The motor accepts a voltage signal from an electronic controller to position a damper or valve at any point between open and closed.

Features:

Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position.
Motor and circuitry operate from 24 Vac.
Quick-connect terminals are standard--screw terminal adapter is available.
Adapter bracket for matching shaft height of older motors is available.
Motors have field adjustable stroke (90 to 160 degrees).
Integral auxiliary switches are available factory mounted, or can be field added.
All models have dual shafts (slotted and tapped on both ends).
All models have auxiliary switch cams.
Fixed torque throughout the entire voltage range.

Application	Electric
Dimensions	6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep
Frequency	50 Hz, 60 Hz
Power Consumption Driving	10 VA
Temperature Range	-40 to +60 C (-40 F to +150F)

Download Product Information:

Honeywell M7164G1030 Modutrol IV Motor Data Sheet
