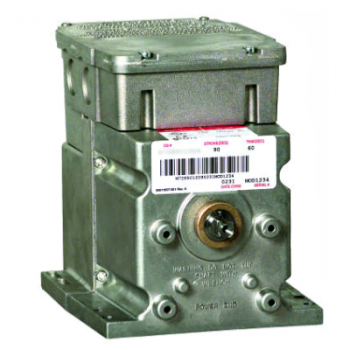

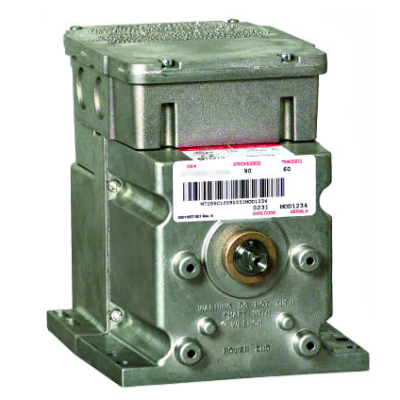

Honeywell M7286G1009 Damper Actuator 24V Spring Return Normally Open

Name: Honeywell M7286G1009 Damper Actuator 24V Spring Return Normally Open
Brand: Honeywell
SKU: M7286G1009
Price: 935.05 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell M7286G1009 Damper Actuator 24V Spring Return Normally Open

SKU: M7286G1009

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 1-2 Weeks	$935.05 /ea	1

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell M7286G1009 Damper Actuator 24V Spring Return Normally Open

The Series 72 Modutrol IV Motors are non-spring return motors used to control dampers and Valves. These motors accept a Voltage signal from an electronic controller to Position a damper or Valve at any point between open and closed.

Features:

Integral spring return returns motor to normal position when power is interrupted.
Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position.
Motor and circuitry operate from 24 Vac.
Quick-connect terminals are standard--screw terminal adapter is available.
Adapter bracket for matching shaft height of older motors is available.
Motors have field adjustable stroke (90 to 160 degrees).
Integral auxiliary switches are available factory mounted, or can be field added.
Spring return motors can operate valve linkages from power end or auxiliary end shafts for normally closed or normally open valve applications.
All models have dual shafts (slotted and tapped on both ends).
All models have auxiliary switch cams.
Fixed torque throughout the entire voltage range.
Motors are designed for either normally open or normally closed valves and dampers.
Models available with adjustable start (zero) and span.
Models available with 4 to 20 mA input signal.
Models available with 2 to 10 Vdc input signal.
Die-cast aluminum housing.

Application	Electric
Dimensions	6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
Frequency	50 Hz, 60 Hz
Power Consumption Driving	15 VA
Temperature Range	-40 to +60 C (-40 F to +150F)

Download Product Information:

Honeywell M7286G1009 Damper Actuator Data Sheet
