Honeywell M8185D1006 Actuator 24V

Name: Honeywell M8185D1006 Actuator 24V
Brand: Honeywell
SKU: M8185D1006
Price: 1292.15 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell M8185D1006 Actuator 24V

SKU: M8185D1006

Brand:

Rating:

Quantity	Price	Stock
42 Usually Ships 1-2 Weeks	$1,292.15 /ea	42

Add to Cart

Add to Wishlist

The M8185D1006 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Honeywell M4185A1001 Modutrol IV Motor 120V Spring Return	M4185A1001 Brand Honeywell

Add to Cart

Add to Wishlist

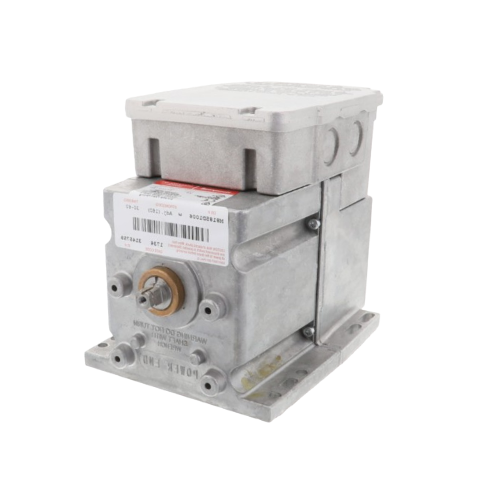

Honeywell M8185D1006 Modutrol IV Motor 24Vac Spring Return 60Lb-In Torque

Two Position SPST
Voltage: 24Vac
Torque: 60 Lb-In
Nominal Timing: 30-60 Second
Adjustable Stroke: 90-160 Degree
Actuator Style: Spring Return
Foot Mounted
Dual Ended Square Shaft
Integral Junction Box Provides Nema 3 Weather Protection
Ambient Temperature Range: -40-150

Application	Electric
Dimensions	6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
Frequency	50 Hz, 60 Hz
Power Consumption Driving	20 VA
Temperature Range	-40 to +60 C (-40 F to +150F)

Download Product Information:

Honeywell M8185D1006 Actuator Data Sheet
