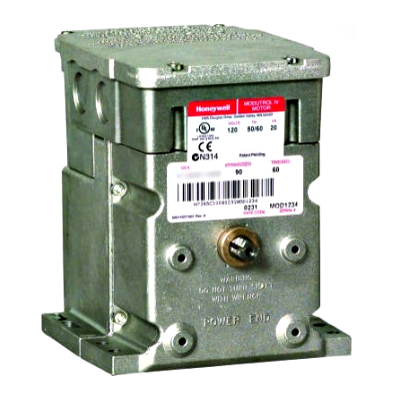

Honeywell M9184C1031 Proportioning Control Motor 24V

Name: Honeywell M9184C1031 Proportioning Control Motor 24V
Brand: Honeywell
SKU: M9184C1031
Price: 1370.15 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell M9184C1031 Proportioning Control Motor 24V

SKU: M9184C1031

Tariff HS Code: 8501104020

Brand:

Rating:

Quantity	Price	Stock
74 Usually Ships 1-2 Weeks	$1,370.15 /ea	74

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell M9184C1031 Proportioning Control Motor 24V

Series 91 Modutrol IV motors non-spring return modulating proportional control motors are used with controllers that provide a Series 91 output to operate dampers or valves.

Features:

Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position.
Motor and circuitry operate from 24 Vac.
Quick-connect terminals are standard--screw terminal adapter is available.
Adapter bracket for matching shaft height of older motors is available.
Motors have field adjustable stroke (90 to 160 degrees).
Integral auxiliary switches are available factory mounted, or can be field added.
All models have dual shafts (slotted and tapped on both ends).
All models have auxiliary switch cams.
Fixed torque throughout the entire voltage range.

Dimensions	6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep
Frequency	50 Hz, 60 Hz
Ambient Temperature Range	-40 F to +150 F (-40 C to +60 C)
Supply Voltage	24V
Control Signal	Proportional, 135 ohm

Download Product Information:

Honeywell M9184C1031 Proportioning Control Motor Data Sheet

Honeywell M9184C1031 Damper Adjustment Instructions
