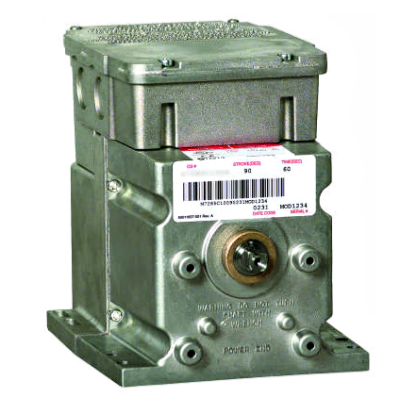

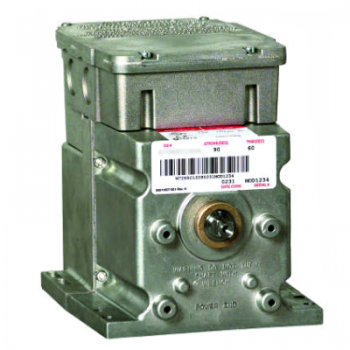

Honeywell M9185A1018 Proportioning Control Motor 24V

Honeywell M9185A1018 Proportioning Control Motor 24V
Images for general purposes only. Actual may be different than depicted.
Honeywell M9185A1018 Proportioning Control Motor 24V

Honeywell M9185A1018 Proportioning Control Motor 24V

SKU: M9185A1018
Rating:
Quantity Price Stock
16
Usually Ships 1-2 Weeks
$1,425.37     /ea
16
0
$0.00
0
$0.00
0
M9185A1018
Honeywell M9185A1018 Proportioning Control Motor 24V

Series 91 Modutrol IV motors non-spring return modulating proportional control motors are used with controllers that provide a Series 91 output to operate dampers or valves.

Features:
  • Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position.
  • Motor and circuitry operate from 24 Vac.
  • Quick-connect terminals are standard--screw terminal adapter is available.
  • Adapter bracket for matching shaft height of older motors is available.
  • Motors have field adjustable stroke (90 to 160 degrees).
  • Integral auxiliary switches are available factory mounted, or can be field added.
  • All models have dual shafts (slotted and tapped on both ends).
  • All models have auxiliary switch cams.
  • Fixed torque throughout the entire voltage range.
Dimensions 6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
Frequency 50 Hz, 60 Hz
Ambient Temperature Range -40 F to +150 F (-40 C to +60 C)
Supply Voltage 24V
Motor shafts Dual-ended shaft
