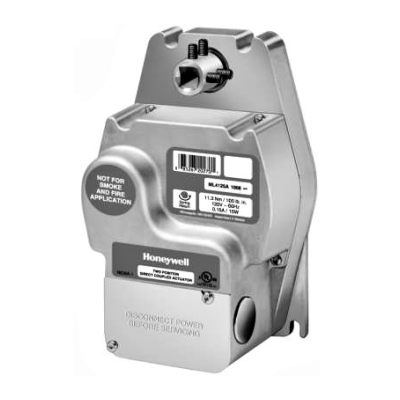

Honeywell ML4125D1005 Direct-Coupled Actuator Spring Return 2-Position 230V

Name: Honeywell ML4125D1005 Direct-Coupled Actuator Spring Return 2-Position 230V
Brand: Honeywell
SKU: ML4125D1005
Price: 183.79 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Honeywell ML4125D1005 Direct-Coupled Actuator Spring Return 2-Position 230V

SKU: ML4125D1005

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1-2 Weeks Usually Ships 1-2 Weeks	$183.79 /ea	Usually Ships 1-2 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell ML4125D1005 Direct-Coupled Actuator Spring Return 2-Position 230V

The ML4125 Fast-Acting, Two-Position Actuators are spring return direct coupled actuators (DCA) with an integral junction box for on/off damper control.

Features:

Integral spring return
-40 C to 130 F (-40 C to 54 C) operating temperature range.
No audible noise during holding.
Electronic circuitry provides efficient operation while eliminating the need for limit switches.
Ninety-five degree angle of rotation.
Die-cast aluminum housing. Housing design allows flush mounting to damper.
Integral junction box with three conduit openings eliminates need for separate wiring box.
Direct mounting to 3/8 or 1/2 in. round or square shaft.
Not intended for smoke control systems

Dimensions	7.5 in high x 5.13 in wide x 3.32 in deep
Frequency	50 Hz; 60 Hz
Supply Voltage	230 Vac Â±10%
Power Consumption	Driving-- 0.12A, 18.6W, Holding-- 0.10A, 7W
Ambient Temperature Range	-40 F to +140 F (-18 C to +60 C)

Download Product Information:

Honeywell ML4125D1005 Direct-Coupled Actuator Data Sheet

Honeywell ML4125D1005 Direct-Coupled Actuator Installation Instructions
