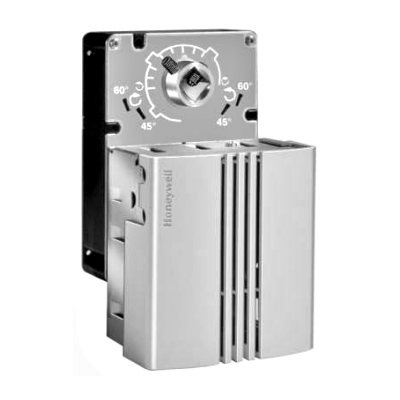

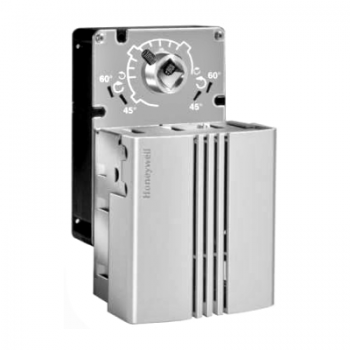

Honeywell ML6161C2007 Direct-Coupled Actuator 24V

Name: Honeywell ML6161C2007 Direct-Coupled Actuator 24V
Brand: Honeywell
SKU: ML6161C2007
Price: 185.95 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Honeywell ML6161C2007 Direct-Coupled Actuator 24V

SKU: ML6161C2007

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1-2 Weeks Usually Ships 1-2 Weeks	$185.95 /ea	Usually Ships 1-2 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell ML6161C2007 Direct-Coupled Actuator 24V

SPDT floating actuator with 35 lb-in and non-spring return. The 35 and 70 lb-in. (4 Nm and 8 Nm) Non-Spring Return Direct Coupled Actuators (DCA) are control actuators that provide floating or proportioning control for valves and dampers. The proportioning actuators accept a current or voltage signal from a controller to position the damper or valve at any chosen point between fully open and fully closed. Floating actuators are suitable for use with single pole double throw (spdt) floating thermostats or two-position control systems. Two-position control requires installation of the 201052B Auxiliary Switch.

Features:

Control for air damper applications with up to10 sq.ft. assuming 3.5 in-lb per sq.ft. of damper area, velocity independent.
Superior A/C synchronous submotor for consistent timing and actuator longevity.
Eliminate need for limit switches or mechanical stops by providing magnetic coupling.
All models include manual declutch lever, and bag assembly with two minimum position setscrews.
Mount directly on 3/8 inch or 1/2 inch square or round damper shaft.
Selectable 45, 60, and 90 stroke in either clockwise or counterclockwise direction.

Dimensions	5.86 in high x 3.63 in wide x 3.74 in deep
Frequency	50 Hz; 60 Hz
Supply Voltage	24 Vac Â±20%
Power Consumption	Driving-- 1.8 VA
Ambient Temperature Range	20 F to 125 F (-18 C to +50 C)

Download Product Information:

Honeywell ML6161C2007 Direct Coupled Actuators Data Sheet
