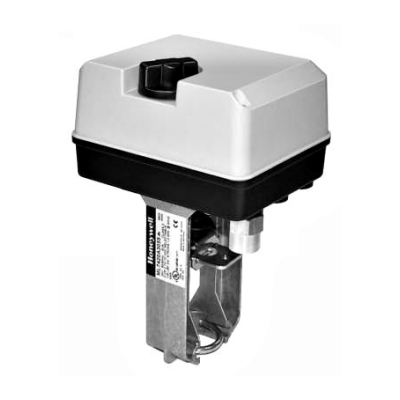

Honeywell ML6420A3056 Direct-Coupled Actuator Non-Spring Return

Name: Honeywell ML6420A3056 Direct-Coupled Actuator Non-Spring Return
Brand: Honeywell
SKU: ML6420A3056
Price: 283.23 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Honeywell ML6420A3056 Direct-Coupled Actuator Non-Spring Return

SKU: ML6420A3056

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1-2 Weeks Usually Ships 1-2 Weeks	$283.23 /ea	Usually Ships 1-2 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell ML6420A3056 Direct-Coupled Actuator Non-Spring Return

The Non-Spring Return Electric Linear Valve Actuators have floating or modulating control. These actuators operate standard Honeywell valves in heating, ventilating, and air conditioning (HVAC) applications. Floating control actuators are used with controllers that provide a switched or floating single-pole double-throw (SPDT) output. Modulating control actuators are used with controllers that provide an analog output of 0 to 10 Vdc or 2 to 10 Vdc.

Features:

Easy and quick installation on valves with 1 3/8 in. bonnet and 3/4 in. stroke
No separate linkage required
Conduit connector standard
No adjustments required on linkage.
Accurate valve positioning
Low power consumption
High close-off ratings
Force limiting end switches
Manual operator
Synchronous motor
Maintenance free
ML7420 has an internal selector plug that can be used to reverse the direction of action.

Dimensions	9 9/16 in. high x 5 5/16 in. wide x 6 5/16 in. deep
Frequency	50 Hz; 60 Hz
Supply Voltage	24 Vac Â±15%
Power Consumption	Driving-- 6 VA
Ambient Temperature Range	14 F to 122 F (-10 C to +50 C)

Download Product Information:

Honeywell ML6420A3056 Electric Linear Valve Actuators Data Sheet
