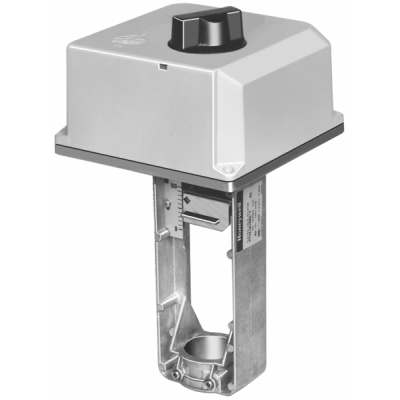

Honeywell ML7421B1023 Direct-Coupled Actuator Non-Spring Return

Name: Honeywell ML7421B1023 Direct-Coupled Actuator Non-Spring Return
Brand: Honeywell
SKU: ML7421B1023
Price: 657.57 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell ML7421B1023 Direct-Coupled Actuator Non-Spring Return

SKU: ML7421B1023

Brand:

Rating:

Quantity	Price	Stock
10 Usually Ships 1-2 Weeks	$657.57 /ea	10

Buy in Bulk & Save

Quantity	Price
5+	$624.70 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell ML7421B1023 Direct-Coupled Actuator Non-Spring Return

The ML6421A,B Non-Spring Return Electric Linear Valve Actuators are suitable for use with low-voltage, single-pole double-throw (spdt), Series 60 two-position and floating controllers. These actuators operate standard Honeywell valves in heating, ventilating, and air conditioning (HVAC) applications. The ML7421A,B Non-Spring Return Electric Linear Valve Actuators are modulating control actuators used with control that provide an analog output of 0 to 10 Vdc or 2 to 10 Vdc. These actuators operate standard Honeywell valves in HVAC applications. An internal selector plug can be used to reverse the direction of action.

Features:

Easy and quick installation on valves with 1 3/8 in. bonnet and 3/4 in. stroke, or with 1 7/8 in. bonnet and 1 1/2 in. stroke
High force for VGF Pressure-balanced valves
No separate linkage required
Conduit connector standard
No adjustments required on linkage
Accurate valve positioning
Low power consumption
High close-off ratings
Force limiting end switches
Manual operator
Synchronous motor
Maintenance free

Dimensions	12 3/4 in. high x 7 in. wide x 7 in. deep
Frequency	50 Hz; 60 Hz
Supply Voltage	24 Vac +10%, -15%
Power Consumption	Driving-- 12 VA
Ambient Temperature Range	14 F to 122 F (-10 C to +50 C)

Download Product Information:

Honeywell ML7421B1023 Electric Linear Valve Actuators Data Sheet
