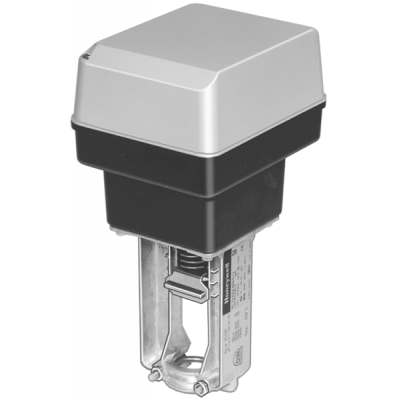

Honeywell ML7425A3013 Direct-Coupled Actuator Spring Return

Name: Honeywell ML7425A3013 Direct-Coupled Actuator Spring Return
Brand: Honeywell
SKU: ML7425A3013
Price: 667.38 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell ML7425A3013 Direct-Coupled Actuator Spring Return

SKU: ML7425A3013

Brand:

Rating:

Quantity	Price	Stock
76 Usually Ships 1-2 Weeks	$667.38 /ea	76

Buy in Bulk & Save

Quantity	Price
5+	$634.01 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell ML7425A3013 Direct-Coupled Actuator Spring Return

The ML6425 Spring Return Electric Linear Valve Actuators are floating control actuators used with controllers that provide a switched or floating single-pole double-throw (spdt) output. These actuators operate standard Honeywell valves in heating, ventilating, and air conditioning (HVAC) applications. The ML7425 Spring Return Electric Linear Valve Actuators are modulating control actuators used with controllers that provide an analog output of 0 to 10 Vdc or 2 to 10 Vdc. These actuators operate standard Honeywell valves in heating, ventilating, and air conditioning (HVAC) applications. An internal selector can be used to reverse the direction of action.

Features:

Easy and quick installation on valves with 1 3/8 in. bonnet and 3/4 in. stroke
No separate linkage required
Conduit connector standard
No adjustments required on linkage
Accurate valve positioning
Low power consumption
High close-off ratings
Force limiting end switches
Internal manual operator
Synchronous motor
Maintenance free

Dimensions	11 1/4 in. high x 5 5/16 in. wide x 6 5/16 in. deep
Frequency	50 Hz; 60 Hz
Supply Voltage	24 Vac Â±15%
Power Consumption	Driving-- 12 VA
Ambient Temperature Range	14 F to 122 F (-10 C to +50 C)

Download Product Information:

Honeywell ML7425A3013 Electric Linear Valve Actuators Data Sheet
