Honeywell ML8135A1003 Direct-Coupled Actuator

Name: Honeywell ML8135A1003 Direct-Coupled Actuator
Brand: Honeywell
SKU: ML8135A1003
Price: 134.49 USD
Availability: OutOfStock

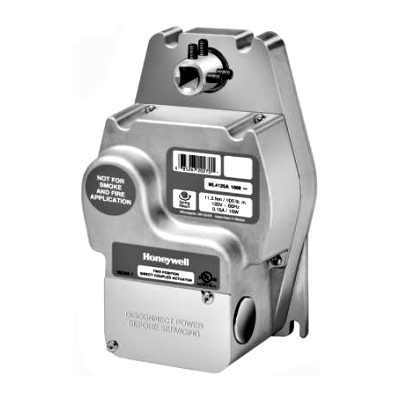

Images for general purposes only. Actual may be different than depicted.

Honeywell ML8135A1003 Direct-Coupled Actuator

SKU: ML8135A1003

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1-2 Weeks Usually Ships 1-2 Weeks	$134.49 /ea	Usually Ships 1-2 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell ML8135A1003 Direct-Coupled Actuator

HVAC fast-acting, 2-position Actuator with 40 lb-in., spring return CCW, 24 Vac +20%, -10%. The ML4125, ML4135, ML8125 and ML8135 Fast-Acting, Two-Position Actuators are spring return direct coupled actuators (DCA) with an integral junction box for on/off damper control. The actuator accepts an on/off signal from a single-pole, single-throw (spst) controller. Models are available with clockwise (cw) or counterclockwise (ccw) spring return and are designed for heating, ventilation, and air-conditioning (HVAC) applications.

Features:

Integral spring return.
-40 C to 130 F (-40 C to 54 C) operating temperature range.
No audible noise during holding.
Electronic circuitry provides efficient operation while eliminating the need for limit switches.
Ninety-five degree angle of rotation.
Die-cast aluminum housing. Housing design allows flush mounting to damper.
Integral junction box with three conduit openings eliminates need for separate wiring box.
Direct mounting to 3/8 or 1/2 in. round or square shaft.
Not intended for smoke control systems.

Dimensions	7.5 in high x 5.13 in wide x 3.32 in deep
Frequency	50 Hz; 60 Hz
Supply Voltage	24 Vac +20%, -10%
Power Consumption	Driving-- 18 VA, Holding-- 8.5 VA
Ambient Temperature Range	-40 F to +130 F (-18 C to +55 C)

Download Product Information:

Honeywell ML8135A1003 Fast Acting Actuators Data Sheet
