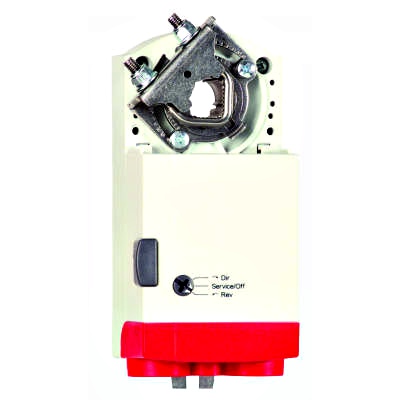

Honeywell MN6105A1011 Direct Coupled Actuator 24 Vac

Name: Honeywell MN6105A1011 Direct Coupled Actuator 24 Vac
Brand: Honeywell
SKU: MN6105A1011
Price: 159.10 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell MN6105A1011 Direct Coupled Actuator 24 Vac

SKU: MN6105A1011

Brand:

Rating:

Quantity	Price	Stock
100 Usually Ships 1-2 Weeks	$159.10 /ea	100

Buy in Bulk & Save

Quantity	Price
5+	$151.14 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell MN6105A1011 Floating Actuator 2-Position Non-Spring Return 24Vac

Two Position, Float Actuator - 44 lb-in. This non-spring return direct-coupled damper actuator provides floating and two-position control for: air dampers, VAV units, air handlers, ventilation flaps, louvers, and reliable control for air damper applications with up to 10 sq ft (0.9 sq m) / 44 lb-in. (5 Nm) and 20 sq ft (1.9 sq m) / 88 lb-in. (10 Nm) (seal-less damper blades; air friction- dependent).

Features:

Declutch for manual adjustment
Adjustable mechanical end limits
Removable access cover for direct wiring
Mountable in any orientation
Function selection switch for selecting modulating or floating/2-position control

Dimensions	5.23 in high x 2.60 in wide x 2.44 in deep
Frequency	50 Hz; 60 Hz
Supply Voltage	24 Vac +20%, -15%; 24 Vdc
Power Consumption	Driving-- 5 VA
Ambient Temperature Range	-5 F to +140 F (-20 C to +60 C)

Download Product Information:

Honeywell MN6105A1011 Non-Spring Return DCA Data Sheet

Honeywell MN6105A1011 Direct Coupled Actuator, 24 Vac Instruction Manual
