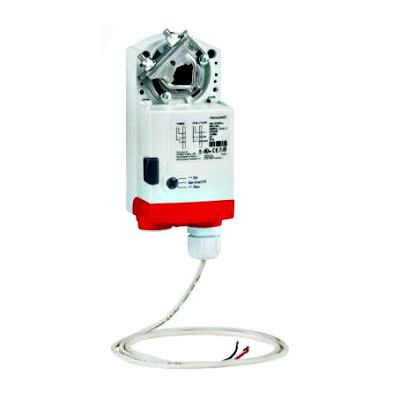

Honeywell MN6105W1011 Floating Actuator 2-Position Non-Spring Return

Name: Honeywell MN6105W1011 Floating Actuator 2-Position Non-Spring Return
Brand: Honeywell
SKU: MN6105W1011
Price: 78.80 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Honeywell MN6105W1011 Floating Actuator 2-Position Non-Spring Return

SKU: MN6105W1011

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1-2 Weeks Usually Ships 1-2 Weeks	$78.80 /ea	Usually Ships 1-2 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell MN6105W1011 Floating Actuator 2-Position Non-Spring Return

Two position, floating actuator with 44 lb-in non-spring return and 24 Vac. This non-spring return direct-coupled damper actuator provides floating and two-position control for: air dampers, VAV units, air handlers, ventilation flaps, louvers, and reliable control for air damper applications with up to 10 sq ft (0.9 sq m) / 44 lb-in. (5 Nm) and 20 sq ft (1.9 sq m) / 88 lb-in. (10 Nm) (seal-less damper blades; air friction- dependent).

Features:

Declutch for manual adjustment
Adjustable mechanical end limits
Removable access cover for direct wiring
Mountable in any orientation
Function selection switch for selecting modulating or floating/2-position control

Dimensions	5.23 in high x 2.60 in wide x 2.44 in deep
Frequency	50 Hz; 60 Hz
Supply Voltage	24 Vac +20%, -15%; 24 Vdc
Power Consumption	Driving-- 5 VA
Ambient Temperature Range	-5 F to +140 F (-20 C to +60 C)

Download Product Information:

Honeywell MN6105W1011 Non-Spring Return DCA Data Sheet
